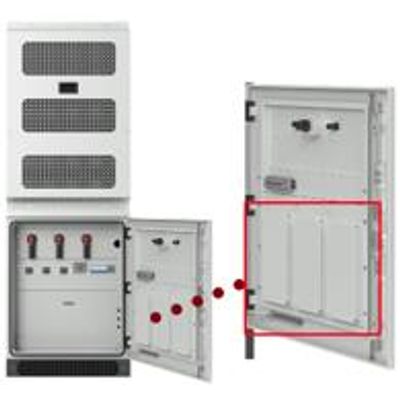

eQube - Model SC300/375/525/600 -100KW - 300KW@400V AC-Coupled Battery Energy Storage System (BESS)
- 75-225kW@400V(IEC)&480V(UL)
- 100-300kW@400V(IEC)
- 125-375kW@480V(UL)
- 175-525kW@600V@600V(UL)
- 200-600kW@690V(IEC) Bidirectional PCS
- SC300/375/525/600 contains modular design with flexible quantity (1~3) of PCS AC modules for 400/480/600/690Vac grid connection
- SC300/375/525/600 integrated with modular IP65 bidirectioanal PCS, AC breakers, switchs, commnucation, aux power, UPS snd other safety protections in IP54 outdoor enclosure.
- Available in duration of 2, 3 and 4hrs energy storage system. All of our BESS are factory-built to last, designed for 20 years life spend accessorized to meet international standards and specifications with multiple protections, and are fully tested.
- 407kWh-6,512kWh CATL LFP Battery Storage System (0.5CP)
- SC300/375/525/600kW@400/480/600/690Vac 3P3W 50/60Hz Bidirectional PCS - Modular Design PCS Cabinet (1~3 PCS)
- Modular design, flexible power configuration
Ability to operate up to 1500VDC
Multi-string technology for better battery safety and performance
Battery Management System (BMS)
Liquid Cooling System
Fire Suppression System & Safety Protections (Alarm, Sensors & Detectors)
IP54 Enclosure Protection
CE LVD IEC 62109/62477, CE EMC IEC 61000, UL1741, IEEE1547 2018 / UL1741 SB, UL9540A, UL1973 and more.
Compliance with UL9540, NFPA855
Wave Microgrid comes with standard capabilities such as Asset Monitoring and Control, Scheduling and Dispatch, Active and Reactive Power Import and Export Control, Islanding and Resynchronization, Frequency Control, Voltage Control, and Spinning Reserves Management. With its standard Application Programming Interface (API), Wave can also be quickly extended to implement custom economic and optimization logic to meet different customer and market requirements.
Base Capabilities:
Monitoring and Control
Scheduling and Dispatch
Active Power Import and Export Control
Reactive Power Import and Export
Islanding and Resynchronization
Frequency Control
Voltage Control
Spinning Reserves Management
Load Forecasting
Renewables and Variability Forecasting
Reporting
Optional capabilities
Market Interface (VPP)
Custom Apps
