Advanced Energy Industries, Inc.

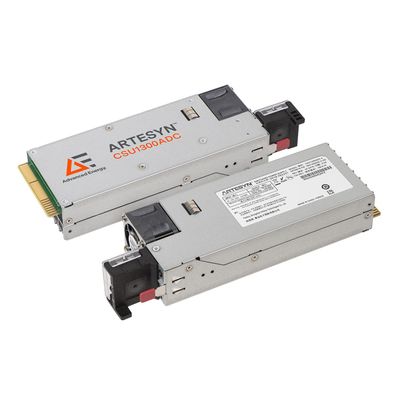

Advanced Energy - Model Artesyn- CRPS - CSU1300ADC Series - 1300 W Distributed Power System
Advanced Energy`s Artesyn CSU1300ADC is housed in the standard 1U x 73.5 x 185 mm form factor featuring -48 VDC input voltage. This DC-DC power supply belongs to the CRPS family of products, and matches the mechanical form and fit of Advanced Energy`s AC-DC power supplies. The common form, fit, and function for all products in the family provides a path for power capacity flexibility, future proofing your system designs.
Most popular related searches
AC-DC power supply
DC power supply
power supply unit
DC power unit
distributive power
distributed power
power distribution system
high power density
power distribution
load current
- 1300 W output power
- 1U power supply
- High density design: 39 W/in3
- N+M redundant N+M ‰¤ 4
- Input Range -40 to -72 VDC
- Hold-up Time 2.4 ms
- Current Sharing Within ±5% @ full load rating
- Max Input Current 50 A at -40 V
- Output Current 1-106.5 A
- Load Sharing 120 mV
- Output Power 1300W continuous
- Accurate input power reporting
- Active current sharing
- Full digital control
- High power and short form factor
- Hotpluggable
- Inrush current control
- PMBus® compliant
- Reverse airflow option
- Uses twohole terminal lugs to handle high input current
- Efficiency Platinum Level
- Alert ActiveLow
- Protection OVP, OCP, Short Circuit, OTB
- Power Good Active High
- Output Power (W): 1300
- Length (Inches): 7.28
- Width (Inches): 2.89
- Height (Inches): 1.57
- Mounting Type: Rack-mount
- Minimum Output Current (A): 1
- Maximum Output Current (A): 106.5
- Output Voltage Range (V): 11.4V to 12.6V
- Minimum Output Power (W): 0
- Maximum Output Power (W): 1300
- Minimum Input Voltage (V): -72
- Maximum Input Voltage (V): -48
- Warranty (Years): 2
