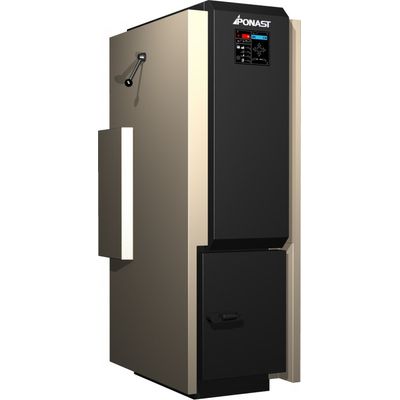

Ponast - Model KP 11.1 (14,9kW) -Automatic Woodpellet Boiler
Except the basic functions the boiler is equipped with an automatic ignition and a semi-automatic heat exchanger cleaning. Also it is designed for installation in family houses, where its operation is controlled by a room sensor. The boiler can be equipped with GSM system for remote monitoring and control and by module which allowes ethernet connection.
Automatic operation is managed by a room sensor – automatic fuel loading from the fuel bin.
This is an automatic boiler controlled by temperature sensors. Permanent service is not needed, occasional service consists of controling the fuel level in the bin and checking the amount of ash in the ashtray.
In approximately monthly intervals manual cleaning of the heat exchanger and ash removal must be performed
Fuel: Boilers are intended for combustion of wood pellets of a diameter of 6 mm and 8 mm.
- Output: 14,9 kW
- Output range: 4,5 - 14,9 kW
- Fuel consumption: 1,1 - 3,5 kg/h
- Efficiency: 90,8 %
- Flue gas temperature: 79-126 °C
- Minimal operation chimney draught: 8 Pa
- Recommended temp. of heating water: 55 - 80 °C
- Dimensions: 565x1078x1440mm
- Weight: 255 kg
- Conecting voltage: 230 V AC ± 10%, 50Hz ± 2Hz
- Electric input (2 motors + fan): 173 W
- Power: 14,9 kW
- Fuel: pellets
- SVT: 1381
