ACME - Model ABS-CEJS Series - Auxiliary Boiler Systems
From Electric Boilers - Auxiliary Boilers System
For the past 45 years, ACME-AEP has manufactured the key components of auxiliary boiler systems, namely boilers, superheaters, secondary pressure vessels, and associated control systems. Power generation projects require an auxiliary boiler system to provide steam on start-up, during maintenance shut-downs, steam turbine gland systems, etc.
Products Details
The Acme ABS Packages are up-to-date solutions to current problems. For maximum flexibility of operation, quick response, precise control, and avoidance of environmental consequences, the electric solution is the best choice. Pressure Vessels are built to ASME Code or EU Pressure Vessels Directive. Electrical Standards meet CSA or UL or CE.
Quality control is according to ISO 9001:2015.

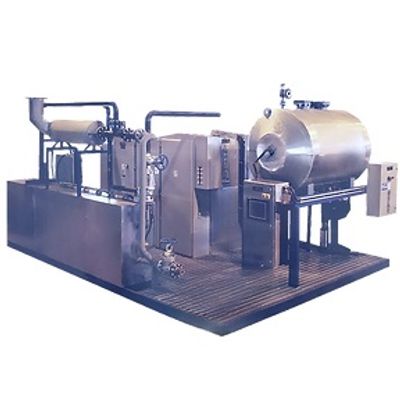

Electric Element Boiler – Superheater Package Piping Diagram
The two diagrams shown are slightly different but complement each other. Some auxiliary equipment shown on the H.V. diagram may be required in the element boiler diagram and vice versa. It is up to the designer to select and specify the features and performance required according to specific project requirements.
Central Control System
Power
Dedicated Power Panels are provided for Boiler, Superheater and Feedwater Pumps
Control
- Sensors for Pressure, Temperature and Level are connected at their respective locations on the equipment selected.
- Control Valves are located in the interconnecting piping.

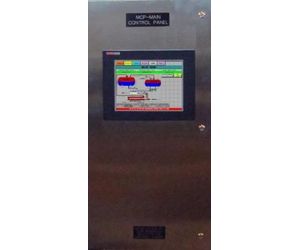

- A PLC based Central Control Panel collects all information and operates the system according to programmed logic.
- Information on all conditions is displayed by the HMI with manual override of the program.
- Retransmission to or control from the BAS is available.
