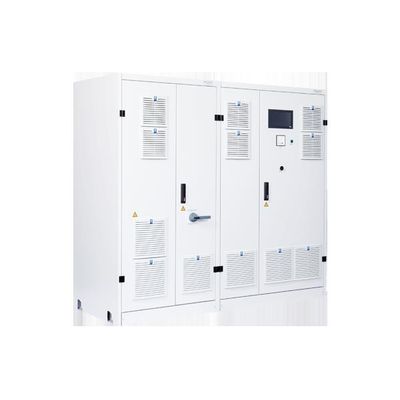

GK - Model TYP I-TS-3870 & MI-TS-3871 -Battery Pack / Fuel Cell / e-Powertrain
TYP I-TS-3870 & MI-TS-3871: I-TS-3870: Single-channel system for testing and simulation of batteries, fuel cells and powertrains. One output with up to 1000 V or 1000 A. Maximum power in single operation 650 kW, up to 1.3 MW in parallel operation. MI-TS-3871: Multi-channel system for energy-saving tests and simulations. Two or four outputs, up to 1000 V and 1000 A per output (without galvanic isolation between the DC outputs).
Most popular related searches
fuel cell
circuit breaker testing
circuit breaker test
fuel cell test
fuel cell testing
battery testing
drive train
discharge test
circuit breaker
energy saving
- Battery tests (charge and discharge tests of batteries)
- Battery simulation / battery emulation
- Load for fuel cells
- Test power supply for contactors, fuses and circuit breakers
- Test of DC motors (drive train)
- Testing of charging columns (comemso)
- Power supply to trains for maintenance purposes at the ICE (German high speed train) plants
Safety equipment
- Safety control for performance level d (PLd) according to ISO 13849-1 / EN 60204-1
- DC output contactor
- Output electrically isolated from the mains
- Main switch (load-break switch with fuses in the AC input; can be locked in the off position)
- Stop switch (black Pilz button) in control cabinet door
- Voltmeter and green operating light in cabinet door
- Connection terminals for external emergency stop
- Terminals for external stop
Interfaces (partly optional)
- Modbus TCP/IP
- CAN-Bus
- VNC via Ethernet
- SCPI
- EtherCAT
- PROFIBUS
- PROFINET
- Analogue interface
- Labview driver package
- Matlab Simulink (running Matlab Simulink projects)
- Further interfaces optionally available
General properties
- Highly dynamic inverter
- Short-circuit proof < 3 kA (< 8 kA for 1000 A systems)
- Control accuracy 0.1 % fs
- Residual ripple voltage and current < 0.1 % fs
- Measuring accuracy voltage and current 0.1 % fs
- Terminals for sense line for DC voltage measurement
- Current rise time < 1 ms (up to 800 V), < 1.3 ms (1000 V)
- Seamless transition source/sink
- TFT display with touch operation
- Protection class IP20
- Air-cooled
- High efficiency
Our options (excerpt)
- Insulation monitoring
- Protective diode (no source operation)
- Parallel run
- PDSB (DC distribution cabinet in different variants)
- Discharge Unit
- PDU (connection box for DUT)
- Performance level "e"
- Emergency stop in cabinet door
- Various enclosure protection types available
- Water cooling instead of air cooling
