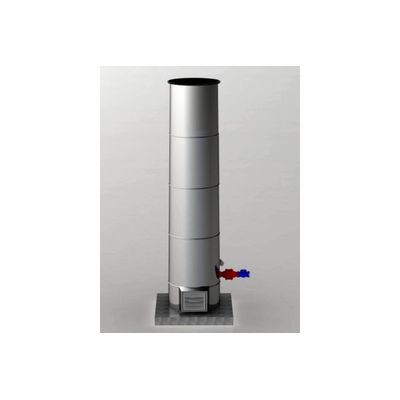

Encore Combustion - Model Bio-VCU Series - Bio-Gas Enclosed Flare System
Suitable for use in all bio-gas applications – landfill, wastewater treatment, food processing, breweries, etc.. Provides ground based, completely hidden combustion process. Provides smokeless combustion. The combination of residence time, elevated combustion temperatures, and a turbulent mixing zone create greater combustion efficiency. Temperature controlled to ensure the highest destruction efficiency throughout the waste gas flow range.
Most popular related searches
waste gas
gas combustion system
waste gas burner
enclosed flare system
refractory lining
combustion chamber
combustion temperature
combustion system
gas combustion
flaring system
- Landfills
- Wastewater treatment
- Food processing
- Breweries
- Burners, pilots, stack, manifolds, rain shield, valves, and flame / detonation arrestor material selection suitable for highly corrosive waste gas conditions including presence of H2S
- Encore ContraFlash anti-flashback waste gas burners provide safe, efficient and reliable combustion
- Encore Energen pilots provide reliable and instantaneous ignition
- Optional secondary flashback protection with a flame or detonation arrestor
- Carbon steel combustion chamber with high temperature refractory lining
- Natural draft combustion air delivery system
- Optional purge blower assembly
- Smokeless flow rates of up to 100% of total waste gas flow
- Minimal noise signature
- No radiant heat allows installation next to equipment and personnel
- Sampling ports allow for in situ emissions testing
- Stable and reliable combustion
Emissions:
- NOx emissions: < 0.06 Lbs/mmbtu
- CO emissions: < 0.11Lbs/mmbtu
- 99.5%+ destruction efficiency
Dimensions:
Standard height: 20’- 60’ + [6.1 m – 18.3 m +]
Diameter: 24” – 144” + [610 – 3658 mm +]
Standard Materials:
Combustion chamber: refractory lined carbon steel
Burners: 316SS
Burner Manifold: 316SS
