Sciencetech - Model 585-0154 - Calibrated Reference Cell, Quartz Window (SC-LT-Q)
FromSciencetech Inc.

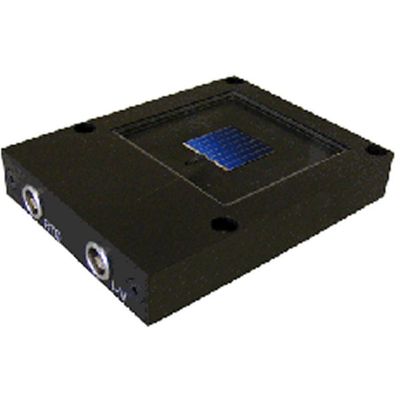

The Solar Reference Cell consist of a 20 x 20 mm monocrystalline silicon Photovoltaic Cell encased in a 92 x 70 x 16 mm metal enclosure with a protective quartz window and a temperature sensor. The temperature sensor is a 100 ohm platinum Resistance Temperature Detector (RTD).
Most popular related searches
solar simulation and PV testing system
solar reference cell
photovoltaic testing system
solar simulation
photovoltaic testing
silicon photovoltaic
solar cell
photovoltaic cell
solar photovoltaic testing
monocrystalline photovoltaic
The Solar Reference Cells come with an ISO/IEC 17025 accredited certificate of calibration and compatible set of connecting cables.
The certificate includes:
- Isc, Imax, Voc, Vmax, Pmax, Spectral Correction, Fill Factor, Area and Efficiency.
- Measurements are made in accordance with ASTM E948 and E1021, traceable to NIST and NREL.
