Sciencetech - Model 125-9033 - Calibrated Reference Cell (SCI-REF-Q)

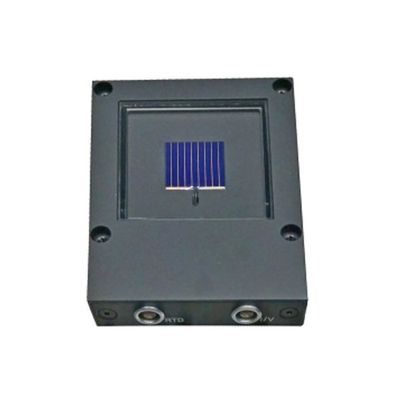

The Solar Reference Cell consist of a 20 x 20 mm monocrystalline silicon Photovoltaic Cell encased in a 92 x 70 x 16 mm metal enclosure with a protective quartz window and a temperature sensor. The temperature sensor is a 100 ohm platinum Resistance Temperature Detector (RTD).

Most popular related searches

solar simulation and PV testing system

solar reference cell

photovoltaic testing system

solar photovoltaic testing

monocrystalline photovoltaic

The SCI-REF-Q Solar Reference Cells come with a Sciencetech certificate of calibration and compatible set of connecting cables.
The certificate includes:

Isc, Imax, Voc, Vmax, Pmax, Spectral Correction, Fill Factor, Area and Efficiency.
Measurements are made in accordance with ASTM E948 and E1021.
