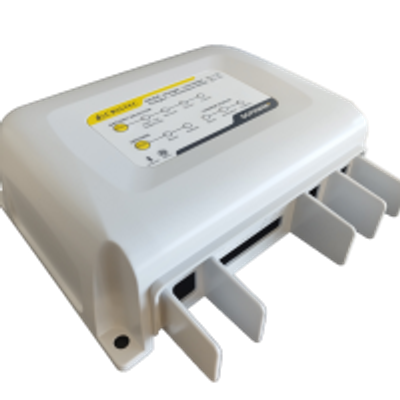

Cristec - Model DCPOWER+ - Converter-Charger for Battery Bank Charger
DCPOWER+ converter-chargers have been designed to charge a 12, 24, 36 or 48V battery bank from a 12, 24, 36 or 48V network. The most typical case of use is the 24V bow-thruster battery bank charge from the 12V onboard network (model YPO12- 24/30). They also allow a LiFePO4 battery to be recharged from a Lead battery connected to an alternator.
Thanks to their large scale of input and output voltage, they can be configured as a simple converter or as a battery charger.
In this case, the charging curve delivered is the same as the one of a smart charger :
- 5 steps
- all types of batteries
Compact & lightweight
With weights between 9.8 and 36 kg, they provide about a 70% reduction in weight and space, making them a very efficient and easier technology to implement.
Bluetooth
The Bluetooth function allows monitoring of individual cell voltage, temperature, and visualization of potential alarms from a mobile device (Android or iOS).
No derating
Chargers have full charge up to +60°C (140°F) with no loss, resistant to harsh environments.
Ignition protected
They can be installed in the engine room thanks to ISO8846/SAE J1171 compliance which protects against ignition of flammable gases.
5-stage charging profile
- Boost: charges batteries to 80% of full charge
- Absorption: slowly completes remaining charge to 100%
- Floating: maintains battery charge
- Automatic refresh: prevents sulphation and revitalizes batteries, selectable by keypad pushbutton
- Reboost: new automatic Boost phase if DC consumers and the state of batteries so require.
Adaptative charging
- DCPOWER+ chargers are compatible with all types of batteries:
- Opened classic lead
- Sealed, gel or AGM
- Spiral sealed
Lithium ready
Lithium Iron Phosphate (LiFePO4) with BMS Selection of your technology of battery is easy to do through the cover keypad.
Remote control
The chargers are fitted with CAN-Bus and Bluetooth interface.
