Arcmed - Cutaway Flare Connection System
Typical thermoforming creates scoring and distortion of tubing that give particulates more surface to cling to, producing sample carryover. Our proprietary thermoforming process creates an inert, smooth surface with a flat-bottom, face seal.
Most popular related searches
- For precision fluid lines, such as those that handle samples and reagents
- To reduce build and service times using pre-assembly and labeled tubing services
- Maximum chemical compatibility and minimal carryover

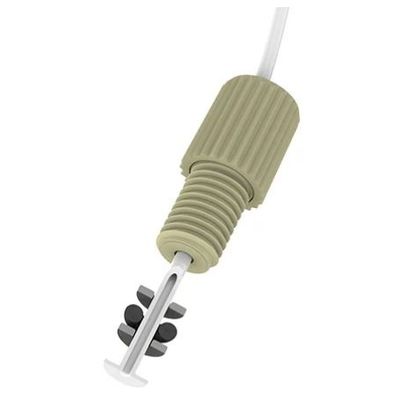

When combined with our Click-N-Seal fittings, the flared tubing connection system produces a leak-free seal with only tube material in the fluid path. Flared tubing assemblies are available in a variety of configurations to adapt to your instrument.
- 1/16 - 1/8” OD plastic tubing such as PTFE, FEP, LDPE, or PEEK
- Connections to 1/4-28, 10-32, M6, and 6-40 threaded ports
- Click-N-Seal Fittings:
- Standard: A recessed design for maximum engagement with threaded ports
- Plus: A slim profile with improved pressure and chemical compatibility
- Ultra: A compact head design with pressure compatibility up to 7,000 psi for HPLC applications
