Monarch Instrument - Model Track-It (5396-0511) - DC Voltage & Current Data Logger with Standard

General

• Record: Sample Rates: User configured 1 every 2 seconds to 1 every 24 hours, No. of Samples: 32,000 or 64,000 (depends on config)
• Record Trigger: Two independent triggers, Multiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week
• Record Mode: Fill to end of memory or cyclic, number of samples, time duration
• Display: 4-digit LCD (non-display versions available with LED only), User programmable: Indication of data value, eng units, alarms, record mode, battery condition, time/date, memory
• LED: User programmable: Indication of alarms, recording, triggered
• Button: User programmable: View display, record on/off, reset alarms
• Alarms: 2 user-programmable alarms (High or Low)
• Communication: Direct USB connection

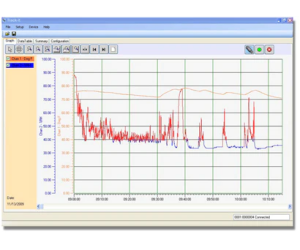

• Software: Track-It™ Software—Program device, view data (historic or real-time), export to Excel™ (simple and advanced modes)
• Battery:  Coin Cell Battery: Lithium CR2032, Life: 1 year @ 1 minute sample rate
• Dimensions (LxHxW): 4.06 in. x 0.66 in. x 1.00 in. [10.32 cm x 1.67 cm x 1.00 cm]

Measurement

• Temperature Range:
• -20 to +85 °C /-4 to 185 °F w/EF65162 battery
• -20 to +70 °C /-4 to 158 °F w/CR2032 battery
• Accuracy:
• ±0.5 °C   0 to 50 °C / 32 to 122 °F
• ±2 °C   –20 to 85 °C / -4 to 185 °F
• Resolution: 0.06 °C / 0.11 °F
• Clock Accuracy:
• ± 1 minute/year
• Available Analog Modules (for DC V/I)
• Range: 0 to 500 mV (no preconditioning)
• Accuracy: ±0.5% of full scale
• Resolution: ±0.1 mV
• Input Modules: 500 mV, 1 V, 5 V, 10 V, 20 mA

*Specifications are subject to change without notice.

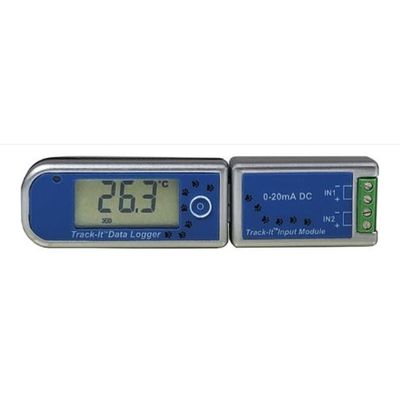

The Track-It™ DC Voltage and Current Data Logger is a two-channel battery-powered standalone compact data logger that records up to 32,000 samples each of dc voltage or current data. Units are available in four DC voltage ranges and one for dc current. The unit is easily configured using the included Track-It™ DataLogger Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours.

The onboard data storage is non-volatile so data will not be lost in the event of a depleted battery. The Track-It™ DC Voltage and Current Loggers can also be used to record ambient temperature if one or neither input is being used. The information displayed on the LCD is also user programmable and can be sequenced by pressing the logger button. A multicolored LED indicator notifies the user of alarms or general activity.

• Industrial process monitoring
• Troubleshooting problematic signals
• Productivity monitoring
• Remote indication

• Push button to start recording immediately or program to start recording at a later time and date
• Up to 64,000 samples per recording session
• 500 m V dc, 1 V dc, 5 V dc, 10 V dc, or 20 mA
• +/- 0.5% accuracy
• Multiple alarm setpoints
• Compact size
• NIST Traceable Certificate available
• Integral USB interface/connector (no cable required)
• Powerful interactive Track-It Software package included
• 1 year or 5-year lithium battery options
• High accuracy and repeatability
• Accurate internal clock (1 minute/year)
