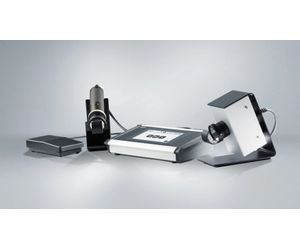

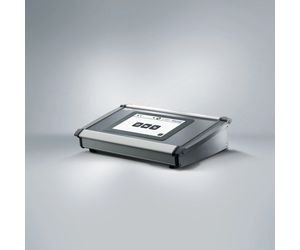

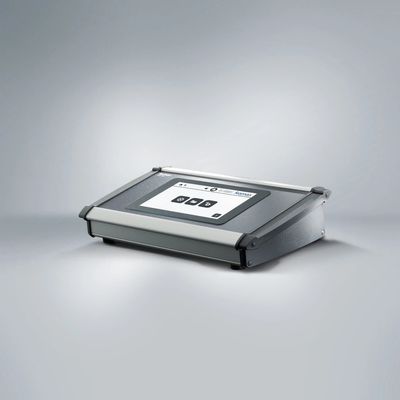

Komax - Model IRDC-2000-2 -Digital Control Unit for Heat Shrinking

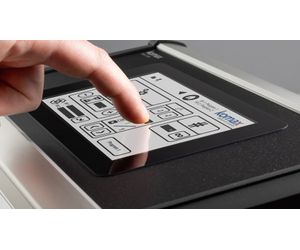

The IRDC-2000 is a digital control unit designed to manage the heating process of infrared shrinking appliances – optional with two channels to control two different appliances. The two-channel version of the IRDC-2000 digital control unit allows for independent control of two different infrared shrinking appliances. The device offers a software-controlled controller with a user-friendly touchscreen interface for easy operation. The software allows the user to fully customize programs and offers try-out parameters in a test mode. During the heating process, the production status can be monitored for efficient quality control. Additionally, the device can be connected to a network for remote access, enabling users to configure and operate the unit from a remote location. The foot pedal switch is available as an optional accessory for hands-free operation.
Software-controlled precision
Set precise parameters tailored to various applications, whether you’re dealing with delicate or heavy-duty tasks, consistent and reliable results are guaranteed every time.
Create and edit programs within the database. Utilize the test mode to determine burn power and time. Even design sequential programs composed of multiple processing steps.

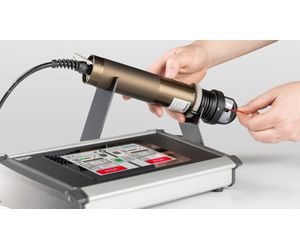

Simultaneously or independently control two infrared shrinking devices. Activate each channel using the foot-operated switch or the switch on the infrared shrinking device.
Configure and operate the product remotely. Access the user interface conveniently through a web browser, which mirrors the interface as it appears directly on the product.
Get complete access to the software. From initial configuration to programming, testing, and production, you can seamlessly navigate the entire process.
IRDC-2000-2
Metric
- Channels: 2
- Connected load per channel (230 V): 1150 W
- Connected load per channel (110 V): 550 W
- Electrical connection: 110 – 230 VAC, 50 – 60 Hz
- Weight: ca. 1 kg
- Dimensions/length: 344 mm
- Dimensions/width: 192 mm
- Dimensions/height: 78 mm
- Cable length: 2000 mm
- Ambient temperature min.: 0 °C
- Ambient temperature max.: 40 °C
- Air humidity non-condensing min.: 15 %
- Air humidity non-condensing max.: 85 %
Imperial
- Channels: 2
- Connected load per channel (230 V): 1150 W
- Connected load per channel (110 V): 550 W
- Electrical connection: 110 – 230 VAC, 50 – 60 Hz
- Weight: ca. 2.2 lb
- Dimensions/length: 13.5 in
- Dimensions/width: 7.6 in
- Dimensions/height: 3.1 in
- Cable length: 78.7 in
- Ambient temperature min.: 0 °F
- Ambient temperature max.: 104 °F
- Air humidity non-condensing min.: 15 %
- Air humidity non-condensing max.: 85 %
