Thermobile - Model AGA E -Direct Propane/Natural Gas Fired

• With fresh air intake to the burner.
• Easy access for service, good heat distribution, easy access for cleaning.
• Full humidity and dust proof control panel containing all electronic components.
• Burner with electronic ignition, ionization protection and thermostat connection.
• Room ventilation is required, even for models with separate fresh air intake to the burner.
• KIWA-CE certified.
• All models can be used horizontally and vertically, blowing either upwards or downwards.
• AGA 45/75/102/111 E are equipped with 5 metres fresh air suction hose, 2 hose clamps and SS wall connector for fresh air intake.
• AGA 100 E is not equipped with fresh air intake to the burner.
• AGA 102 E is standard equipped with fresh air intake and modulating burner, not suitable for propane gas.
• AGA 45/75/100/111 E suitable for propane and natural gas.

Please note:

• Before ordering please specify gas type.
• When using propane gas or high pressure natural gas a pre-pressure regulator is required.
• For AGA models the following pressure at the heater is required:
• AGA 45/75/100/111 E: minimum 25 millibar, maximum 100 millibar.
• AGA 102 E: minimum 25 millibar, maximum 50 millibar.
• If the gas supply pressure is higher than the maximum a pressure regulator is required (accessory).
• Installation by approved gas fitter is mandatory.

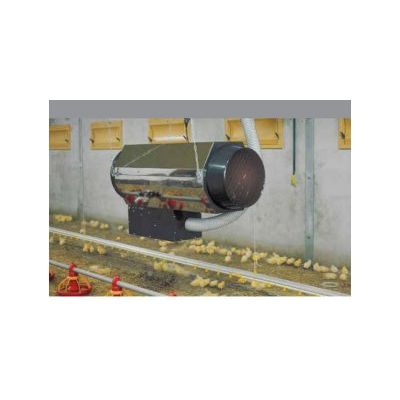

• Livestock : Heating of pig and poultry houses.
• Agriculture :Drying of agricultural products.
• Horticulture :Heating of greenhouses and polytunnels (N.B. Control CO2 and CO emission.)
