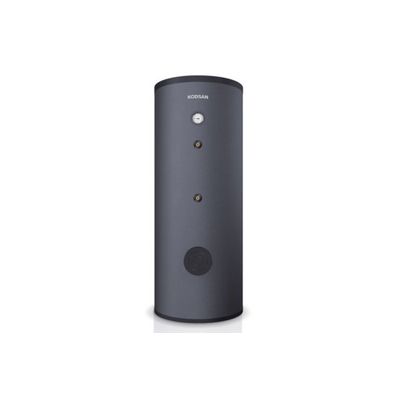

Kodsan - Model KXD Series - DOUBLE ROW COIL HEAT PUMP WATER HEATER
The most distinguishing feature of the Maxi water heaters from the other domestic boilers is that in the same volume, more coil surface area is supplied in this system, which delivers more hot water than its counterparts in terms of capacity. Spire through the top of the water heater to the bottom, there is a always uniformly distributed homogeneous heat distribution in the water heater. The entire boiler water is heated with long coils cover water heater thus, there are no cold regions in which Legionnaire’s bacteria grow. Particularly preferred to be used for the fast production of hot water for systems running in low temperature.
Place of Use; Villas, apartments, hospitals, sports halls, factories, construction sites and various heating processes, heat exchangers rooms or solar energy systems.
- Volume : 160 lt -500 lt
- Maximum Heating Power : 218 kW
- Maximum Solar Collector Area : 17 m2
- Heat Exchanger Maximum Operating Temperature : 110°C
- Heat Exchanger Maximum Operating Pressure : 10 bar
- Domestic Hot Water Maximum Operating Temperature : 95°C
- Domestic Hot Water Maximum Operating Pressure : 10 bar
- Inner Surface Coating : Tank inner surface is enamelled (glass-lined) in accordance with DIN 4753-3 standard.
