GLSF FREE - Model JET -Down-Fired Gas Burner
FromZeeco, Inc.

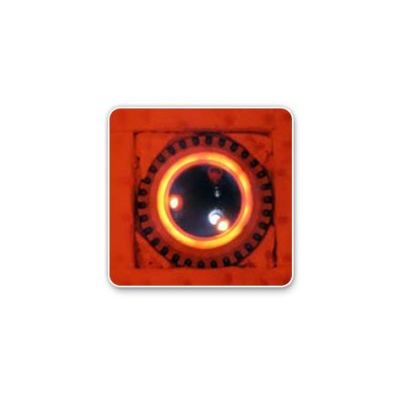

The Zeeco GLSF Free-Jet burner is a Next Generation emissions round flame burner.The picture (right) is Zeeco’s GLSF Free-Jet down-fired burner firing at our Combustion Test Facility located in Broken Arrow, Oklahoma. This design offers up to 90% NOx reduction as compared to conventional burner designs. Dual fuel connection versions and single connection versions of this burner can be offered. The Free-Jet mixing method allows a single connection in applications when PSA fuel is mixed with fuel gas.
Most popular related searches
gas burner
burner
burner system
fuel gas
burner firing
combustion testing
combustion test
burner fuel
gas fire
combustion controller
- Stable flame over a wide range of conditions
- High turndown of 10:1 or greater for most cases
- Tips have only a single firing port and do not require a small ignition port
- Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
- Low maintenance cost since the tips do not have small ignition ports which are prone to plug
- Compact design makes this burner a great choice for retrofit applications
- Low probability of flame interaction since the burners are smaller and gas is not swirled
- Reasonable cost and great value
- Great heat flux profile
- Combustion air dampers are controlled by gears for precise control
- Bearings are used for the combustion air damper shafts for smooth, precise operation
- Configurations available: plenum mounted or individual wind-box
- Burners can be designed for either two fuel connections or one fuel connection
- 304 Stainless Steel fuel gas risers
- 310 Stainless Steel (Type HK) gas tips
