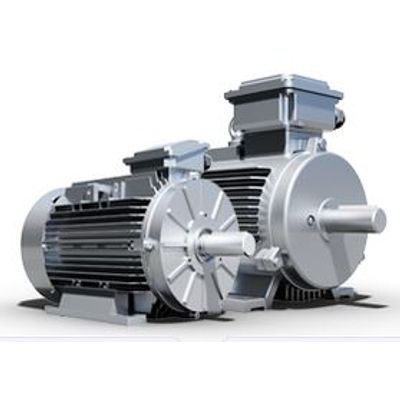

OMEC - Model IE2 -Electric Motors

IE Class: IE2. Output: 0,75kW – 355kW. Poles: 2|4|6 pole. Speeds: 1000–3600 RPM. RPM Frequency: 50 Hz | 60 Hz. Cast Iron framesize: 80–400. Aluminium framesize: 80–160. Protection: IP55 | IP56 | IP65 | IP66. Temperature class: B. Cooling: IC411
Insulation class: F. Duty type: S. Standards: IEC 60034-30 | IEC 60034-2-1. Voltage: 400V Y – Motors ≤ 3 kW, 400V Δ – Motors ≥ 3 kW. Other voltages can be supplied on request..
