Electron - Electrical Power Systems

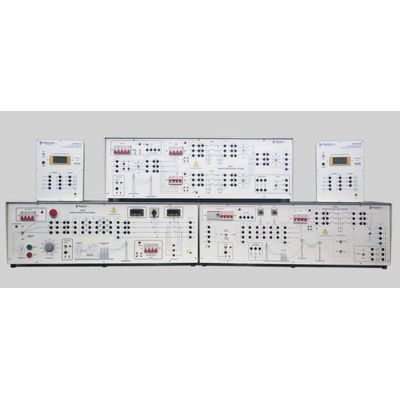

This laboratory simulates a real-life generation, transmission and distribution system based on standard electrical machines, instruments, and a simulated transmission line. The simulator reproduces the conditions of a 30 kV, 30 Km long overhead line. The modularity and integration capabilities of this trainer allow maximum flexibility in implementing the desired configuration. With the proposed mix of products, additional experiments may be designed to reproduce the many different situations that in a power generation, transmission and distribution system may be encountered both in normal and abnormal/failure conditions.
