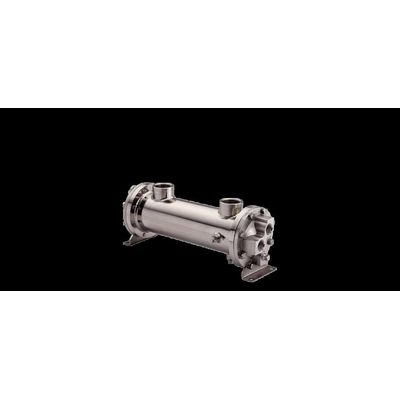

TTP - Model SSC Series -Fluid Water Tube

FromThermal Transfer Products (TTP)

SHARE

The SSC Series features all stainless steel construction. The proven fixed tubesheet design shell and tube heat exchanger offers the cost effectiveness that comes with having a highly standard design, while easily providing for various options to meet specific application requirements. Custom models are also available. This series is preferred for all new oil-water applications.

Most popular related searches

shell-and-tube heat exchanger

shell and tube heat exchanger

tube heat exchanger

mounting bracket

heat exchanger tube

Preferred for new oil-water applications
Type 316 stainless steel construction
Low cost
Custom designs available
Competitively priced
NPT, SAE O-ring, SAE flange, or BSPP shell side connections available
End bonnets removable for servicing
Mounting feet included (may be rotated in 90° increments)
Special TEMAC/CRN ratings available

Maximum Operating Pressure - Shell Side 300 PSI*
Maximum Operating Pressure - Tube Side 150 PSI
Maximum Operating Temperature 300°F

All catalog product is available with short lead-times
Expert application engineers are available to select and size the right product for your application
Custom designs are available

Maximum Operating Pressure - Shell Side 300 PSI*
Maximum Operating Pressure - Tube Side 150 PSI
Maximum Operating Temperature 300°F

Tubes - 316 stainless steel
Tubesheets - 316L stainless steel
Shell - 316L stainless steel
Shell Connections - 316L stainless steel
Baff?les - 316 stainless steel
End Bonnets - 316 stainless steel
Mounting Brackets - Mild steel
Gaskets - Nitrile rubber/cellulose fiber
Nameplate - Aluminum foil
