SINEAX - Model DM5000 -For Monitoring all Aspects of Power Distribution

SHARE

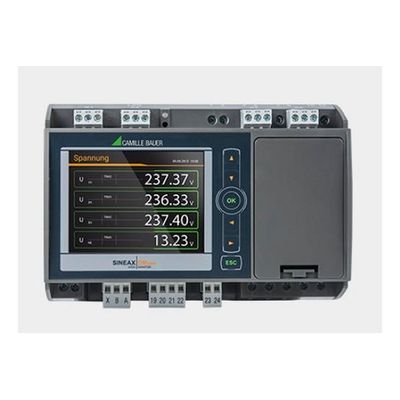

The SINEAX DM5000 is a compact instrument to measure and monitor in heavy current grids. It provides a wide range of functionalities which may even be extended by optional components. The connection of the process environment may be performed by communication interfaces, via digital I/Os, analog outputs or relays. The device may be completely adapted to the requirements on site either via webserver or the optional TFT display. A special software is neither needed for configuration nor for data visualization.

Most popular related searches
energy consumption analysis
power system monitoring
current transformer
power system monitoring system
energy consumption
condition monitoring
power distribution
power monitoring system
power monitoring
energy analysis
  • Direct measurement up to 690V, CATIII
  • Condition monitoring: class 0.1 (U/I), class 0.2% (P/Q/S)
  • Energy consumption analysis, class 0.5S (meters, load profiles, trend analysis)
  • Harmonic analysis acc. IEC 61000-4-7
  • System imbalance monitoring
  • Limit monitoring with alarming
  • Universal process I/O
  • Communication via Ethernet and Modbus/RTU
  • Standard I/Os (1 digital input, 2 digital outputs)

Ethernet interface

  • Device parameterization via WEB browser
  • Firmware update
  • Measurement display (http)
  • Remote acquisition of measurements via control system (Modbus/TCP)
  • Service and maintenance

High resolution color TFT display (320x240px)

  • Graphical measurement displays
  • Multi-language operation
  • Full device parameterization

Uninterrupted power supply (UPS)

  • Provides power for five times 3 minutes if power supply fails

Data logger

  • Periodical data: Load profiles, meter readings
  • Disturbance recorder: Recording of voltage events (acc. PQ standard IEC 61000-4-30)
  • Events: Logbook of the occurrences of system or self-defined events

Two extensions can be implemented in the device. You may select from:

  • 2 relay outputs
  • 2 analog outputs ±20mA
  • 4 analog outputs ±20mA
  • 4 S0 digital inputs active
  • 4 S0 digital inputs passive
  • Fault current detection
    Each fault current module provides two channels for monitoring differential or fault currents in earthed AC current systems. In any case measurement has to be performed via suitable current transformers, a direct measurement is not possible.
  • Time synchronization via GPS
    Very accurate time synchronization of the measurement device using a preconfigured GPS receiver (accessory).
  • IEC61850 interface

Accessories
