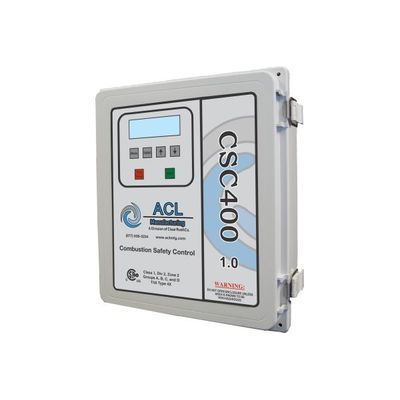

ACL - Model CSC400-FD - Forced Draft Burner Management System/Combustion Safety Controller

The ACL Forced Draft CSC400-FD Combustion Safety Controller is a leading edge burner management system which provides burner ignition and air/fuel ratio control for forced draft burner applications. It monitors three separate thermocouple inputs that can be used for temperature control in process applications such as tanks, heater/treaters, fired separators, line heaters, re-boilers or any other applications where accurate temperature monitoring and/or control is required. The CSC400-FD can be configured to be used on forced draft incinerators, combustors, and air-assisted flare stacks as well. The CSC400-FD provides control for fuel and air ratios for fine tuning. Modbus communications for measurement and control is provided as standard.
