GTS - Geothermal Heat Distribution System

The heat transfer takes place in plate heat exchangers, so that there are a total of 3 closed heat circuits:

• The primary network
• The secondary network
• The grower

There are several heat consumers in a secondary network.

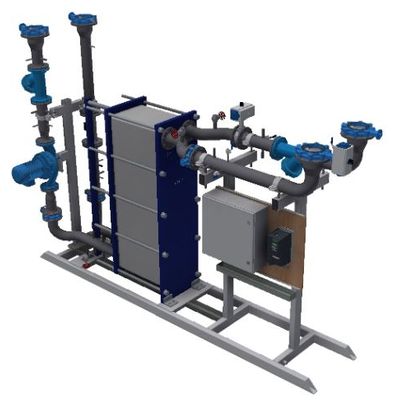

With the help of a control valve in the heat collection station, the hot water flow is controlled to the plate heat exchanger in the heat collection station. This allows the amount of heat to be regulated. The removed heat is measured in the secondary network by a heat meter. The circulation pump of the grower is controlled by means of the temperature difference between the cold side of the secondary network and the cold are on the side of the grower. lp of the temperature difference between the cold side of the secondary network and the cold are on the grower`s side.
