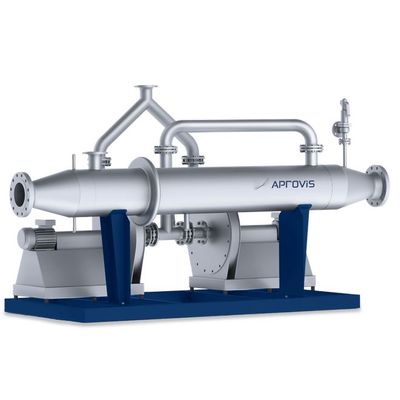

Aprovis - Gland Steam Condensers

SHARE

Gland steam condensers from APROVIS are used in large steam turbines. Steam can be generated from a variety of sources, such as coal, gas or solar operation. APROVIS supplies the corresponding gland steam condensers for both regenerative and conventional applications as a complete system including blowers. As an industry expert with experience at both national and international level, APROVIS is constantly expanding its acceptance procedures in accordance with the relevant country regulations.

Most popular related searches
steam turbine
steam turbine condenser
coal gas
steam turbine generator
turbine condenser
steam generation
steam generator
condensing turbine
turbine generator
What you can expect from APROVIS gland steam condensers:

  • Can be used in regenerative and conventional applications
  • A complete system including blowers
  • Materials are adapted to the relevant application
  • Acceptance currently according to PED 2014/68/EU and the ASME Code; additional certifications to follow

How the gland steam condenser works

At the turbine shaft seal, the blowers create a slight vacuum, sucking in the steam / air mixture. The steam condenses in the gland steam condenser with the help of coolant. This condensate is fed into a condensate system and returned to the steam circuit; the air is discharged from the system.

International guidelines and safety standards

Approvals for APROVIS’s gland steam condensers can be granted at present according to the European Pressure Equipment Directive (PED 2014/68/EU) and ASME. APROVIS responds flexibly and quickly to the networks on the international market to offer additional certifications.
