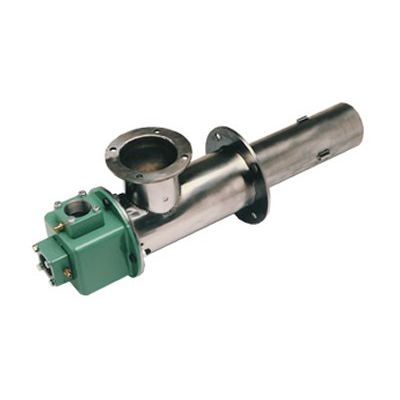

Bayonet - Heat Exchangers
FromEclipse, Inc.
Bayonet recuperators are low cost conventional heat exchangers designed to deliver preheated combustion air to the burner. They`re frequently paired with tube firing burners to provide fuel savings up to 30%.
Most popular related searches
heat exchanger
heat exchanger design
fuel saving
heat recovery
burner
burner firing
burner tube
burner fuel
air preheater
combustion burner
- Simplified design provides easy sizing and installation.
- Rugged, long lasting construction.
- Lower cost than multi-tube recuperators.
Current Version: 1.0
Type: Recuperator
Number of Sizes: 3" (4", 5" & 6" tubes)
Capacity Range: 150,000 to 250,000 (Btu/hr)
44 to 73 (kW)
Turndown: N/A
Max. Process Temperature: 2100°F, 1090°C
Fuels: N/A
Typical Applications:
Indirect Fired Furnaces
Tempering
Hardening
Continuous Lines
Annealing
Galvanizing
Key Attributes:
Cost effective heat recovery. Improves burner efficiency to 60%. Robust, reliable performance.
