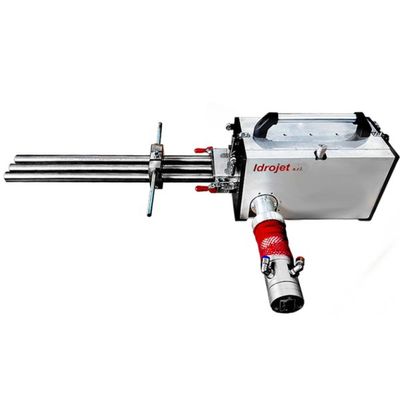

Idrojet - Model Idrobox x3 -Heat Exchangers Cleaning System
FromIDROJET S.r.l
The heat exchangers cleaning system Idrobox x3 was developed for high pressure cleaning using a flexible triple lance.
Most popular related searches
heat exchanger cleaning system
heat exchanger cleaning
heat exchanger system
heat exchanger
bundle cleaning
process heating
The heat exchangers cleaning system Idrobox x3 was developed for high pressure cleaning using a flexible triple lance.
During the cleaning process of the heat exchangers, what we care about is safety, in fact the feeders of the Idrobox are positioned behind the operator.
Thanks to the modular design, Idrobox X3 can mount additional flexible lances.
The heat exchangers cleaning system Idrobox x3 can be integrated into a frame and then positioned, stabilized, and controlled via a control panel.
The reliability of the Idrobox X3 is ensured by a dedicated and supplied FRL air preparation unit.
Technical Specifications:
- Purpose: internal cleaning of heat exchangers
- Number of lances [pcs]: 3
- Possibility of vertical work: YES [only with frame “H” type]
- Horizontal work: YES
- Personalization of the application: YES [for individual needs]
- Operating mode: automatic
- Diameter lanc [OD] [mm]: 8.0 – 15.0
- Min. / Max. air pressure [bar]: 3.0 / 6.3 [for each feeder]
- Air demand [l / min. ]: approx. 600 [for each feeder]
- Lance feed speed [m / s]: 0.58 – 1.4 [for each feeder]
- Feed force [N]: 220 [for each feeder]
- Contents: complete device with accessories, without frame
