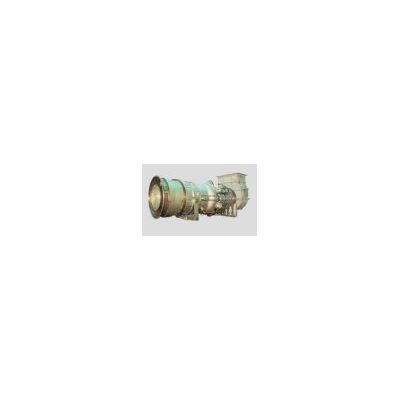

Kawasaki Gas Turbine - Model GPB60/60D -Heavy Duty Single Combustor Gas Turbine
Ideal for reliable on-site base load power generation requiring from 4.5 MW to 5.2 MW for co-generation applications.The GPB60/60D is based on Kawasaki`s proven M7A heavy duty industrial gas turbine with over 15 years of commercial experience and proven reliability. At 5.4 MW (ISO), it is ideal for cogeneration applications in offshore oil platforms, industrial process plant applications, hospitals, universities / colleges, prisons, district energy systems, life-science and bio-science facilities, and other facilities with large thermal and electrical loads. The Kawasaki Industrial Gas Turbine Generator Unit provides the benefit of a large thermal capability to provide a co-generation system efficiency of 82% and a long service life of 32,000 EOH between overhauls.
The GPB60D is suited for geographic areas requiring emissions control, with NOx emissions of 35 ppm (O2=15%) and CO emissions of 50 ppm (O2=15%) from 70-100% load, using Kawasaki`s multiple nozzle DLE (Dry Low Emissions) fuel injection combustion system.
- M7A-01 (GPB60) / M7A-01D (GPB60D) heavy duty industrial single shaft gas turbine engine
- Reduction gearbox with main lube oil pump and turning motor
- VFD Motor starting system
- Indoor enclosure, sound attenuated to 85 dBA, with lighting, ventilation, chain block and rail for maintenance
- 4.16 kV generator, air cooled, open drip proof type, with sleeve bearings and brushless PMG exciter
- Heavy-duty I beam steel base-frame for the turbine engine, primed and painted
- Lube oil system includes gear driven main lube oil pump, duplex filters, air cooled lube oil heat exchanger, motor driven vent demister, tank integrated into the base-frame with oil heater, lube oil filter and lube oil cooler
- Fuel gas system with shut-off block and bleed valves
- State-of-the-art PLC control
- Inlet filter house with weather louvers, and 2 stage static depth loading box type filter system using water resistant synthetic media
- Enclosure designed for 85 dBA noise attenuation includes fan forced ventilation system with CO2 dampers and maintenance access doors
- Engine Removal I beam with rolling trolley and chain lift
- Battery system ( lead acid) with battery charger for coast down lube oil pumps and jacking motor
- Exhaust flex joint, and exhaust ducting
- Engine compressor water wash cart
- Proven Heavy Duty Industrial Design
- High Efficiency
- Option: Fire and gas detection with CO2 suppression system
- Option: Dual fuel system for operation on both gas and liquid fuels
- Option: Generator Voltages from 4.16 kV to 13.8 kV
