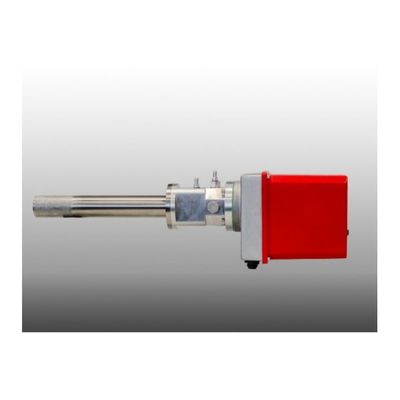

LAMTEC - Model GFI - Lamtec Gas Ignitors
LAMTEC America’s all-in-one design in gas igniter solutions are the industry-leading solution to cost-effective replacement of legacy equipment in terms of installed cost and operational improvements. Igniters that consistently light off main burners, provide reliable transition support, and have proven, tested to compliance, service life, are absolutely must-haves for fossil power (boilers and HRSGs) generation competing against renewables. Igniters that ignite and support fired heater burners thus eliminating a significant source of nuisance trips drop savings directly to the bottom line.
Most popular related searches
fuel gas
fired heater
flame monitoring
flame scanning
flame monitor
coke oven
fossil power
natural gas liquid
burner
natural gas fuel
- Supply voltage:: 220 - 230 VAC (-15/+10 %). 50/60 Hz 120 – 127 VAC (-15/+10 %). 50/60 Hz
- Ignition voltage:: 8 kV
- Power consumption:: 100 VA ignition transformer ≤10 KV flame scanner
- Electrical connection:: Plug with mating caonnector (standard)
- Plug with mating connector with pre-assembled cable
- Cable permanently connected
- Cable length:: 2 m – 100 m, Standard = 5 m
- IP protection:: IP 65/IP 67
- Housing:: Sea water resistant aluminium (standard)
- stainless steel (1.4301/1.4571)
- Coating:: Non (standard)
- C2/C4 painting (option)
- Tube length:: 240 – 6.000 mm
- Tube:: Stainless steel 1.4301, heat resistant end tube1.4841 (standard)
- Stainless steel 1.4571 heat resistant end tube 1.4841 (option)
- Fuel gas:: Natural gas, propane/butane (standard) coke oven gas, refinery gas (option)
- Fuel gas supply pressure:: 50 – 200 mbar above combustion pressure (standard) Orifice for higher pressure (option)
- Air suppl pressurer:: Depending on the size
- Cooling air flow:: Depending on the size, at least 50 % of combustion air flow
- Low loss of pressure through optimisation
- Immediate, repeatable ignition in every firing rate
- Highest flame stability
- Safe flame monitoring
- Modular design
- SIL 3 certified
- Intermittent or continuous operation
- Protection class up to IP 67
- Thermal power up to 3,000 kW
- Flame length up to 2,500 mm
- Pilot burner length up to 6 m
- Fuel: natural gas, LPG (liquid propane gas), coke gas, refinery gas
- Individually customised solutions
