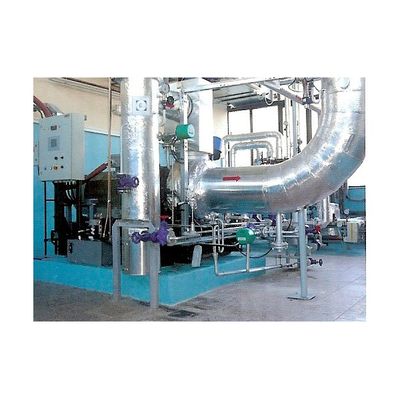

Technopa - Model S2E III. 700-3000 kW -Micro Turbines

• High efficient, steam based energy generator
• Efficient and safe operation
• Excellent ratio power/weight
• Modular construction with simple installation
• Environmental friendly technology
• Fully usable clean output steam
• Working life min. 100 000 hours
• Full power reaction time in 15 minutes

• Characteristics: Specification
• Electric Power: 700 – 3000 kWe
• Incoming steam temperature:
• min 130 °C
• max 380 °C
• Incoming steam pressure:
• min 6,0 bar Abs.
• max 40,0 bar Abs.
• Outcoming steam temperature:
• min 105 °C
• max 280 °C
• Outcoming steam pressure:
• min 0,5 bar Abs.
• max 14 bar Abs.
• Steam flow:
• min 10 t/hour
• max 30 t/hour

• Characteristics: Specification
• Voltage: 230V 480VAC /400VAC
• Frequency: 50 Hz / 60 Hz
• Grid-isolated regulation
• / steady state /:
• +/- 0,50 % nominal voltage max
• +/- 0,50 % nominal frequency
• Isolation class: IP 55

1. Stator , turbine body
2. Rotor
3. Welded steel frame
4. Asynchronous Generator
5. Gear Box
6. Steam Input
7. Steam Output
8. Coupling
9. Seal

Patented turbine

• Blade turbine wheel in one solid piece
• Designed for isoentropic drop min 120 kJ / kg
• Possibility to control partial steam admission
• Turbine is not a pressure tank

Applications

• Reduction turbine / electric energy production
• Electric energy production in the prime or secondary steam line
• Prime mover – ask tech. department

High end level of the components

• Special and safe control valve
• Special and safe mechanical seal

Focus on the Safety and Reliability

• Sensors for safe start/stop and operation control
• Servis Control Tripping safety valve TYCO

Simple operation and control

• Automatic computerized control system
• touch panel for operation
• Internet connection /optional/

Generator

• Asynchronous Siemens generator

Certification

• Steam and condensate connection based on DIN 2576
• CE certification of the S2E module
