Zeeco - Model GLSF - Min-Emissions Down-fired Gas Burner
FromZeeco, Inc.

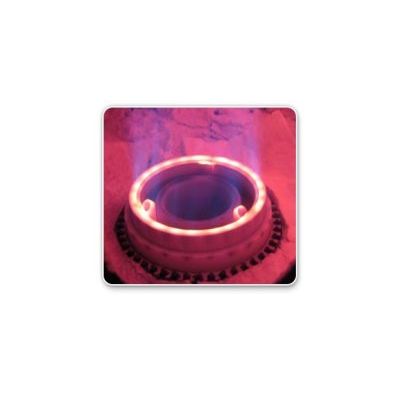

The Zeeco GLSF Mini-Emissions burner is an Ultra-Low emissions round flame burner.The picture (right) is Zeeco’s GLSF Min-Emissions down-fired burner firing with Refining Fuel Gas in the outer tips and PSA gas in the center tip. This design provides a flame shape that is normally the same width as the outside diameter of the burner tile allowing the burners to be installed in close proximity to each other.
Most popular related searches
gas burner
burner
burner firing
fuel gas
low-NOx
burner system
gas fire
combustion controller
burner fuel
combustion control
- Stable flame over a wide range of conditions
- High turndown of 5:1 or greater for most cases
- No stabilization metal used in the burner throat
- Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
- Compact design makes this burner a great choice for retrofit applications
- Compact flame shape
- Great heat flux profile
- Reasonable cost and great value
- Combustion air dampers are controlled by gears for precise control
- Bearings are used for the combustion air damper shafts for smooth, precise operation
- Configurations available: plenum mounted or individual wind-box
- 310 Stainless Steel (Type HK) gas tips
