MLW - Model Monotube Serie -Sanitary MIXFLO Heat Exchanger for Viscous Products

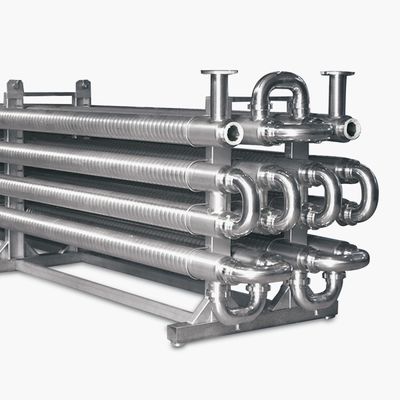

The Monotube MIXFLO Heat Exchanger is designed with two concentric corrugated tubes, where the inner tube handles the product to be thermally processed while the outer jacket contains the service fluid. This fully welded assembly can include an expansion joint if needed. It's highly suitable for thermal exchange processes involving medium to high viscosity products, including those with particulates. The standard materials used are AISI 304/316 L stainless steel, with other materials available upon request. The product side finish has a roughness of Ra < 0.8 µm, and the system can handle pressures up to 10 bar, with higher pressures possible depending on the connections used. The standard operating temperature for the exchanger is 184°C. Connections available include DIN, CLAMP, SMS, BS, and FLANGE. The system can be shipped disassembled if required.

Most popular related searches

heat exchanger

sanitary heat exchanger

heat exchanger design

The Monotube MIXFLO Heat Exchanger consists of two concentric corrugated tubes. The product to be thermally processed flows inside the smaller tube while service fluid flows inside the external jacket. The Monotube MIXFLO Heat Exchanger is fully welded with expansion joint when necessary.

Application range
Particularly suited for thermal exchange process of products having a medium or high viscosity even with particulates.
Standard materials
Stainless steel AISI 304/316 L (Other kind of materials are available on request)
Finishing
Product side Ra < 0,8 μm
Standard pressure project
10 bar
(Higher pressures are available depending on utilized connections)
Standard temperature project
184°C
Connections
DIN-CLAMP-SMS-BS-FLANGE
Options
Monotube Heat Exchanger con be supplied disassembled
