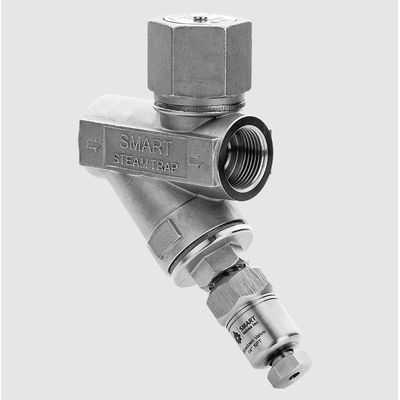

Model SVT DN15/20 -Venturi Steam Trap
The SMART SVT DN15/20 Venturi Steam Trap is designed for multipurpose applications from mainline drainage and trace heating, through small to medium size heat-exchanger process applications. The trap has integrated strainers and a removable venturi insert. The body of the steam trap does not have to be removed from the line for maintenance purposes. Access to the venturi insert and integrated strainers are via the top and bottom caps.
Most popular related searches
Connection
Screwed BSP/NPT
Socket Weld
Flanged
Applications
Line drainage (drip legs)
Trace heating
Process applications
Pressure /Temperature Limits
PMA (Maximum Allowable Pressure) 100 barg (1450 psig)
TMA (Maximum Allowable Temperature) 400°C (750°F)
PMO (Maximum Operating Pressure) 62 barg (899 psig)
Guarantee
20-year product guarantee as per standard terms and conditions
- No moving parts to fail.
- Integrated strainer system and a blowdown valve for easy strainer cleaning.
- Removable venturi insert for precise sizing.
- Simple in-line maintainability.
- Access to venturi insert and strainers via the top and bottom caps.
- 20-year performance and mechanical guarantee.
- A wide range of capacities.
- Custom face to face dimensions for flanged connections.
