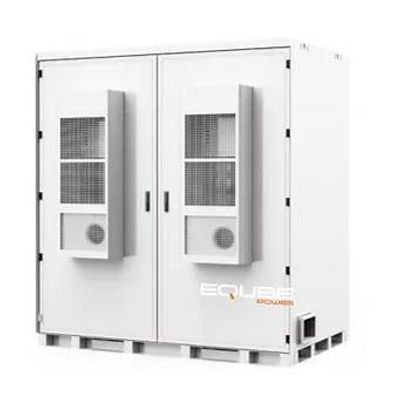

eQube - Model Delta 100/125kW Series - Modular LFP Battery System
Battery System [532kWh to 8,500KWh]
- 100Ah, 3.2V, 400Ah LFP Pouch Cell
- Long Life Cycles - 6000 Cycles (@25C; 70%SOH)
- 532.48KWh energy (0.5CP)
- Nominal Voltage: 1331.2V)
- Operation Voltage: 1164.8~1497.6V
- Air Cooling System
- x2 forced HVAC system
- Fire Suppression System and Protections
- Battery Management System (BMS)
- Outdoor Rated - IP54 Protection
- W2200mm*H2443mm*D1400mm
- UL9540A, UL1973,UN38.3, IEC62477-1,IEC61000-62/4,IEC62619
- DC main circuit combination combines battery cabinets’ main circuit, then connect to PCS
- Aux.: Receive electricity from grid, then supply to HVAC and BMS
- COM: connect with PCS and site control EMS through Ethernet Switch
- Max. up to 16 battery cabinets for 0.25CP; 8 battery cabinets for 0.5CP
- 2 positive and 2 negative ports
- 1500V Rated Voltage
- Air Cooling System
- Outdoor Rated - IP55 Protection
- W1800*H2450*D1000mm
No. 1 market share of polymer lithium-ion batteries are deployed globally - all without incident and in safe operation.
All batteries have extremely low failure of manufacturing rates. 100% of production is automated with constant monitoring and testing to ensure product consistency and quality.
Superior advantages in thermal runaway tested under international labs for test. Integrated with UL9540A certified LFP lithium-iron phosphate technology produces minimal smoke during fire tests and are the safest in the industry.
All batteries go through comprehensive testing & validation protocol. Tests include mechanical shock testing, crush tests, fire testing, vibration testing, and IP testing.
Our battery system meet all transportation requirements and can withstand earthquakes of 8+ on the richter scale.
EQUBE’s BESS deliver the industries leading life cycles — 10,000 cycles. Solutions include self-healing technology to promote longer life and ensure up time.
