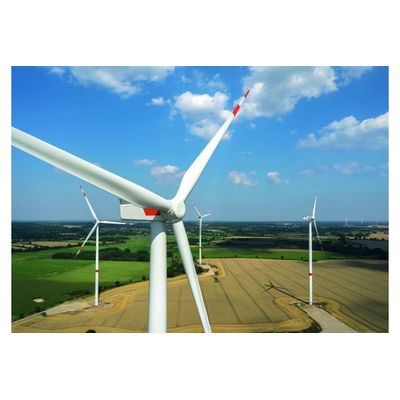

Nordex - Model N117/3600 -Multi-megawatt Wind Turbine
With the Delta Generation, Nordex customers benefit from the know-how the Nordex Group has gathered in the multi-megawatt range over many years. Mature technical solutions that have proven their worth thousands of times form a sound basis for the generation of the 3 MW class.
EXPLORE THE DELTA
The fourth generation of the Nordex multi-megawatt platform combines proven, dependable technology with targeted improvements for enhanced performance. With its larger rotors, increased nominal output and optimised technical systems, Generation Delta is setting standards in terms of economic efficiency, reliability, serviceability and safety for locations with medium and strong winds.
- Operating data
- Rated power : 3.6 MW
- Cut-in wind speed : 3.0 m/s
- Cut-out wind speed : 25 m / s
- Rotor
- Diameter : 116.8 m
- Swept area : 10,715 m²
- Operating range rotational speed : 7.9–14.1 rpm
- Rated rotational speed : 12.6 rpm
- Tip speed : 77 m/s
- Speed control : Variable via microprocessor
- Overspeed control : Pitch angle
- Gearbox
- Type : 3-stage gearbox (planetary-planetary-spur gear)
- Generator
- Construction : Doubly fed asynchronous generator
- Cooling system : Liquid/air cooling
- Voltage : 660 V
- Grid frequency : 50/60 Hz
- Brake system
- Main brake : Aerodynamic brake (pitch)
- Holding brake : Disc brake
- Hub height
- Hub height : up to 134 m, project and site-specific
With the N117/3600, the Nordex Group offers an economical turbine for IEC-II locations. Thanks to the rotor sweep and high rated output, it obtains much higher yields. The turbine is available with hub heights of 84 to 141 meters and is thus ideal for complex locations. The maximum rated power can be adjusted (e.g. 3 MW) to also meet project-specific grid requirements. Nordex limits the sound power level of the N117/3600 to a maximum of 103.5 decibels.
- MATURE TECHNOLOGY
- LARGE ROTOR
- STRONG RATED OUTPUT
- HIGH TOWERS
- HIGH AVAILABILITY
