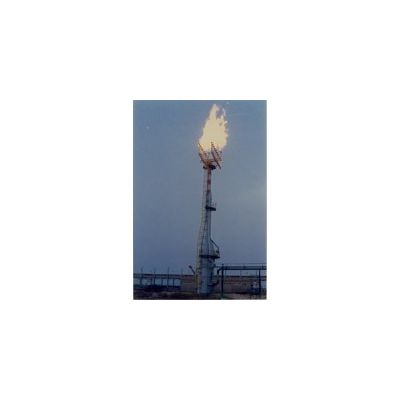

Multipoint Production Flare Systems
From UOP Callidus Flares - Production Flares
This high duty and high smokeless capacity flare system features significantly higher surface to area relationship for waste gas exit compared to single tip designs. This design can facilitate mixing over the widest possible range of flow rates.
-
Most popular related searches
The burner design for this flare system should be ...
The burner design for this flare system should be executed to provide:
- Inspirated air flow and gas flow in proportion
- Stability of waste gas under varying flow conditions
This design best suited for these aspects is a spider-type burner whose center hub acts as a stability point, ensuring stable combustion through a wide range of compositions and turndowns. Our burner has a web underneath each arm that is different than the typical high-pressure tip. To avoid typical burner failure, the webs add reinforcement to the arms so that there is no thermal expansion to cause stress where each arm meets the center hub. In addition, the web is hollow on the inside to provide a better flow pattern to the outermost holes on the spider-type burner. This ensures that the gas will reach the area of the burner with the greatest access to air.
