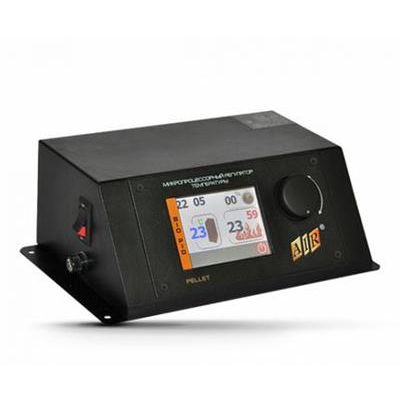

Air Bio - Model 7 630 грн - Oven Controller
The controller allows you to control the process temperature in the industrial and semi-industrial furnaces. Full control of solid fuel feeders and self-cleaning systems. Wide setting ranges of all the controls, which makes it possible to establish optimum operating conditions, virtually all burners operating at different quality pellets. Large and informative TFT-LCD with display of all operating parameters. The possibility of remote monitoring and control via RS-485 interface. The remote control connection through the network GSM, frequency control unit. Guarantee
1,5 year.
1,5 year.
Most popular related searches
burner operation
industrial furnace
pellet burner
burner performance
boiler controller
boiler control
burner
fuel cleaning system
flare burner
flaring
Electrical specifications:
- Food B/Hz 230/50
- Power consumption W 4,5
- Maximum fan power W 200
- The maximum capacity of the grate W 200
- Maximum power feeder W 300
- The maximum capacity of the igniter (TEN) W 1000
- Measurement:
- Precision measurements of flue gas temperature at the outlet °С 2
- Measurement accuracy specified temperatures °С 2
- Measuring range flue gas temperature °С 0 - 400
- Temperature measurement range set °С 0 - 400
- Other options:
- Working temperature °С 10 - 50
- Humidity % 5-95
- Degree of protection IP IP40
- Flare, retort pellet burners
