Standard materials
Stainless steel AISI 316 L seamless tubes (Other kind of materials are available on request)
Finishing
Ra < 0,5 μm product side (Other finishing on request)
Standard pressure project
10 bar
(Higher pressures are available depending on utilized connections)
Standard temperature project
184°C
Connections
CLAMP-FLANGE
MBS S.r.l.
- Home
- Companies
- MBS S.r.l.
- Products
- Pharmaflo - Heat Exchanger for ...

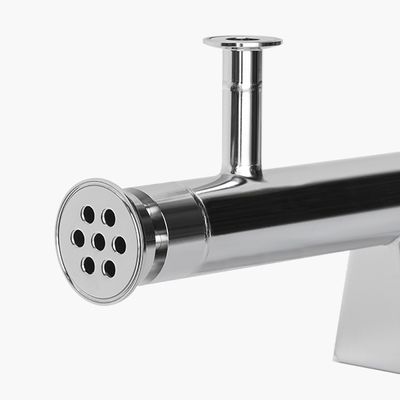

Pharmaflo - Heat Exchanger for Pharmaceutical Fluids
FromMBS S.r.l.
The PHARMAFLO Heat Exchanger is engineered to address the stringent hygienic requirements of the pharmaceutical industry. It features small diameter corrugated tubes encased within an external jacket equipped with tube plates at both ends, ensuring no contamination between the sterile product and the service fluid. An expansion joint is also installed on the external jacket. The design enables the thermal processing of products within the small diameter tubes, while the service fluid flows through the external jacket. This heat exchanger is particularly suitable for managing the thermal exchange of pharmaceutical fluids with low to medium viscosity, such as WFI (water for injection) cooling at the point of use, WFI heating, and condensation processes. Constructed with AISI 316 L seamless stainless steel tubes, it supports a standard pressure of 10 bar and temperatures up to 184°C. The device can be customized with different materials and finishes upon request and offers connections via CLAMP-FLANGE.Most popular related searches
PHARMAFLO Heat Exchanger is realized to meet the pharmaceutical industry need/request of high hygienic measures. PHARMAFLO Heat Exchanger is manufactured by small diameter corrugated tubes inside an external jacket with tube plate on both ends. This solution remove the possibility of any contamination between sterile product and service fluid. An expansion joint is fitted on external jacket. The product to be thermally processed flows inside the small diameter tubes while service fluid flows inside the external jacket Application range Particularly suited for thermal exchange process of pharmaceutical fluids having a low or medium viscosity as for example WFI point of use cooling - WFI heating - condensation.
