CPE - Model CPE30H-XXD - Plate Heat Exchanger
FromCPE Systems Inc.

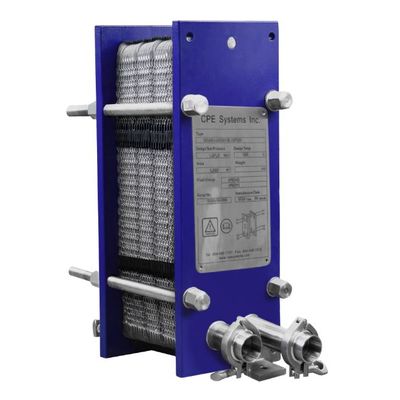

The CPE30D-XXD is a brewery heat exchanger for cooling wort from 200° F to 70° F using city water at around 50 F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.
Most popular related searches
Frame Material: Carbon Steel
Surface Area: From 6.5 ft² to 20 ft²
Plates: 0.5mm 316ss
Gaskets: EPDM clip on gaskets
Design: Dual pass flow
Connections: 1.5" Tri-Clamp Water connections X 1.5" Tri-Clamp Wort connections
Frame: 12L Frame length, Max plates: 60
