ERL TESLA - Model 4000-SV - Power System Recorder with CDR

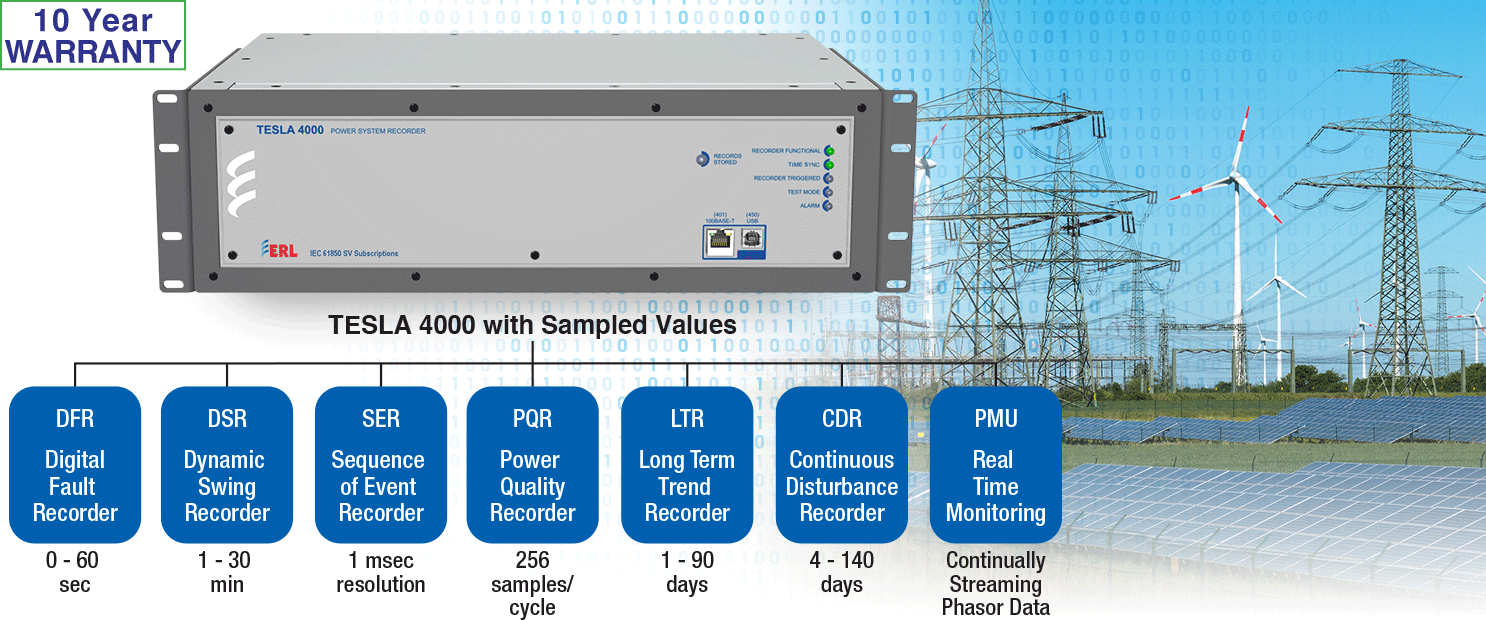

TESLA 4000 Power System Recorder with CDR, PMU and IEC 61850 process and station bus protocols. TESLA 4000 provides support for IEC 61850-9-2LE process bus Sampled Values and IEC 61850-8-1 station bus applications. It implements mapping according to IEC 61850 edition 2 logical nodes and data models. Use the TESLA 4000 to subscribe sampled values streams from merging units. Apply the Model 4000-SV to publish and subscribe to GOOSE messages from protective relays and switchgear. The Model 4000-SV also supports direct streaming of MMS reports to remote clients, eliminating the need for RTUs. The Model 4000-SV supports the top-down or bottom-up engineering process defined in the IEC 61850-6 standard. Such flexibility permits standardization and interoperability of fault and disturbance recording solutions as the industry moves towards fully digital substations.
- Lower Installation Cost - quickly exchange data over the station LAN without wiring separate links for each relay
- Lower Extension Costs - add devices and applications into an existing IEC 61850 system with minimal impact, if any, on existing equipment
- Lower Integration Costs – to integrate substation data into the enterprise, use same networking technology widely used across the utility
- Complete integrated insight of power system health
- Performance monitoring of substation IEDs and equipment
- Over 1000 user settable triggers capture vital information that could be missed by relays in the system
- Information provided for wide area monitoring (WAMS) and analysis
- As a PMU, streams up to 36 phasors, 24 analog quantities, and 64 digital statuses simultaneously
- Easy-to-use setting and analysis software
- GOOSE subscription and publishing on any port
- IEC 61850 Edition 2 support
- Double point status (DPS) data type support
- CDR meets NERC PRC-002 DME standards
- Standard state-of-the-art communications (4 rear ports, 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with ST style connector to accommodate the industry`s latest network-based communications)
- Optional PRP and RSTP network port redundancy (4 rear ports, 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with LC style connector)
- Ethernet ports with unique MAC addresses that easily accommodate network access security needs
- Time synchronization via either IRIG-B or via SNTP or PTP protocols
- Circular sequent of events report buffer of 1000 events
- Sampling rate configurable at 80 or 256 s/c apply to all 36 channels
- Recording of logic channels in fault and swing recordings
- IEEE C37.118-2014 and IEEE/IEC 60255-118-1-2018 compliant
- Swing records with a sampling rate of 1 s/c
- Standard storage memory of 16 GB
