Process-Technology - XC Series, Inline Fluoropolymer Chemical Heat Exchangers

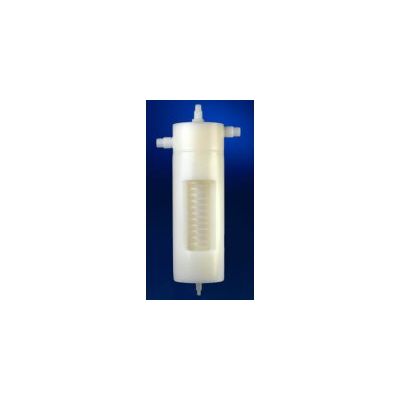

Process Technology`s rugged XC inline chemical heat exchangers are ideal for one-pass cooling of chemicals dumping to waste stream. This product is also appropriate for heating applications. The system innovatively eliminates high costs associated with water aspiration. Utilizing PP or PVDF housing and fluoropolymer tubing, XC is configured for your application with custom sizes available.
Service: In-line chemical heat exchanger with all fluoropolymer wetted surfaces (tubing side) for virtually any wet chemistry application.
Sizes:
• 1.5 ft2 (.14m2) of exchange area
• 2.5 ft2 (.23m2) of exchange area
• 3.5 ft2 (.33m2) of exchange area
Standard Features:
• ½-inch (12mm) heavy wall PFA tubing, .030” (.76mm) thick
• All welded construction (shell)
• 4½-inch (114mm) diameter polypropylene shell
• Internally baffled for enhanced heat exchanger performance
• “U” factor (depending on flow rate): 25-50 BTU/(hr x ft2 x °F) = 142-284 J/(s x m2 x °C)
• Shell-side drain connection
Fluid Connections:
• Fluid (tube): ½-inch (12mm) male flare PFA
• Shell: ¾-inch (19mm) male flare PFA
• Shell drain: ¼-inch (6mm) male flare PFA
Maximum Pressure/Temperature:
• Tube (PFA): 35 PSIG (241 kPa) at 120ºC (250ºF)
• Shell (PP): 30 PSIG (206 kPa) at 82ºC (180ºF)
• Optional shell (PVDF): 30 PSIG (206 kPa) at 135ºC (275ºF)
Warranty: One year
Options:
• ¼-inch (6.4mm) to ¾-inch (19mm) Super Pillar 300 Type® connections
• Custom sizes based on application
• PVDF shell
Exceptionally clean performance: Chemical heat exchanger is cleanroom assembled and tested to ensure the highest manufacturing standards.
Leak free operation: Integral inlet/outlet for single point fluid connections simplifies installation and greatly reduces the potential for chemical leaks.
Outstanding performance: Heavy wall, large diameter tubing improves circulation and minimizes pressure drop.
Compact size: Less surface area required for same BTU exchange compared to most other fluoropolymer exchangers.
Rugged construction: Thick wall, welded construction provides extremely long service life.
Outstanding chemical compatibility: All tube-side parts are fluoropolymer and compatible with most chemistries for virtually unlimited process options. Shell is available in polypropylene (standard) or PVDF construction.
