Endeas QuickSun - Model 550CE - PV Module Testing Station

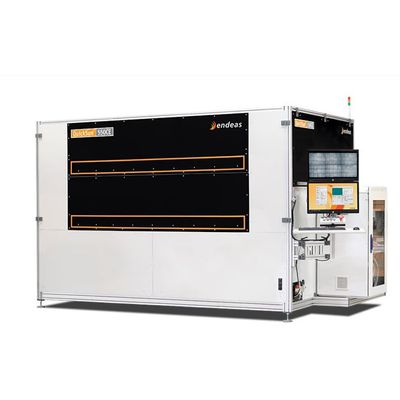

Unique combination of automation and top quality module characterization tools. QuickSun 550CE module testing station is a fully automated solar simulator for qualifying of PV modules with dimensions up to 105 x 205 cm2. High resolution EL imaging, Electrical Safety measurement tools are integrated in the same system. Throughput of 60–150 modules per hour is achieved depending on the applied EL and Electrical Safety testing parameters.
QuickSun 550CE is certified by TÜV Rheinland and a detailed test report is included with every simulator proving Class A+A+A+ performance with respect to spectrum, irradiance non-uniformity and short term instability (STI). Long term instability (LTI) is also within Class A+ tolerances during the 40 ms long flash pulse. IV characteristics are recorded with an electronic load and proprietary electronics unit which measures voltage, current and irradiance signals when module is swept e.g. from short circuit to open circuit or vice versa.
- Contacting J-Box / contact adapter; 4-wire / Kelvin Frame; conical/pyramid pins to drainage holes
- Load feedback controlled MOSFET adjustable bias 0–4.5 V
- Voltage sweep linear and double slope alternatives Isc -> Voc, Voc -> Isc; average of both
- Voltage measurement 1–100 V (other scales on request) accuracy 0.2 % / 512 samples
- Current measurement 0.5–25 A (other scales on request) accuracy 0.2 % / 512 samples
- Irradiance control 200–1000 W/m² resolution 1 W/m² / 512 samples
- Module temperature (IR) 0–75 ºC accuracy 1 ºC
- Monitor cell temperature 0–75 ºC accuracy 1 ºC
- Pmp repeatability (max-min)/(max+min) < 0.25 % std < +/- 0.1%
- Average flash tube life time 300 000 flashes
- Operation temperature 15–35 ºC
- Mains utilities 3~, 400 Vac, 3 x 16 A, 50–60 Hz CDA 4–6 bar
- Total dimensions, weight 370 x 190 x 215 cm 1300 kg
