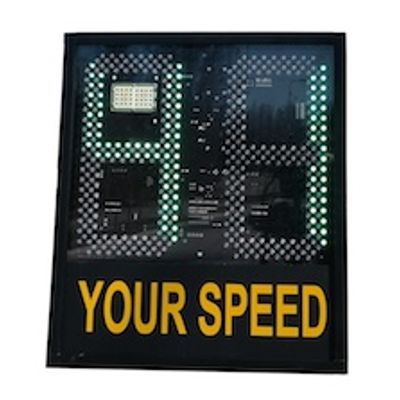

ViaSite - Model 25 Eco -Radar Speed Sign

The ViaEco 25 Eco Radar Speed Sign by ViaSite is designed as an affordable speed monitoring solution for individual users, smaller communities, and municipal councils aiming to mitigate speeding issues in defined zones. Utilizing Doppler radar technology, the sign accurately measures vehicle speeds and employs a dual-color LED display that shifts from green to red if the speed limit is breached, providing clear feedback to drivers. The unit is equipped with a 7 Ah battery and features that include an automatic brightness control to adapt to varying light conditions. Key specifications include a housing size of 370x420x90 mm, 60 mm high LED characters, and a 5 kg total weight including the battery. The radar operates on the K Band with a range of up to 150 meters and maintains an accuracy of +/- 1.5 mph within a speed detection range of 0-199 kph. Additional components comprise a multi-circuit breaker system, an operational power consumption under 0.2 amps, and super-bright red LEDs with a life expectancy of up to 100,000 hours. The system supports 240VAC and optional 12VDC power supplies with provisions for solar panel installation. The device housing is constructed from PVC, suitable for a wide temperature range and high humidity levels, and meets NEMA 4R weatherproof standards with a shatter-resistant Makrolon display cover. Mounting hardware compatible with various pole sizes is provided, and the system includes a one-year parts and labor warranty.

1.1 Operational:

Display Brightness Control: Auto adjust to light conditions

1.2 Dimensions

Driver Feed Back Sign Housing: 370x420x90 mm

Height of letters : 60 mm

LED Display Characters: 2 digits, 10" (250 mm) high Super Bright red LEDs

1.3 Weight

5 kg with battery

1.4 Components

Circuit Breaker: Multi-circuit, 5 amp fuses

Power Supply: 240VAC and optional 12 VDC (7 Ah) Batteriy with solar panel

Power Consumption: < 0.2 amps (2 W) in active mode, idle mode < 1 watt

LEDs: Super Bright red LEDs with 8000 mcd each (life up to 100,000 hours)

1.5 Radar Unit

Type: K Band, directional Doppler radar, FCC part 15 compliant

Sensor Range: Sensor range up to 150 m

Beam Width: 30/40 degrees, +/- 2 degrees

Operating Frequency: 24.125 GHz, +/- 50 MHz

Accuracy: +/- 1.5 mph

Speed Detection Range: 0 - 199 kph

1.6 Housing

Composition & Finish: PVC case

Temperature Ranges: A/C model: -20 C to +60 C; Solar & Battery models: -10 C to +60 C

Humidity Maximum: 100%

Weatherproof: Conforms to NEMA 4R level design, non-sealed & ventilated

Makrolon Display Cover: 4 mm thick, shatter resistant, protects LEDs

1.7 Pole Mounting Hardware

Hardware Available For 2,5" (76 mm) round poles as standard and 60 or 89 mm is available for option

1.8 Solar Power

Solar Panel Output: 40 watt, Voltage at Pmax = 17.4V, Current at Pmax = 3.11 Amps

Pole Mount: Side pole mount with 20° angle bracket for effective solar charging

1.9 Warranty

Basics: Parts and Labor: 1 year

As an option the VIaSite 25 ECO can be accompanied by a solar panel.
