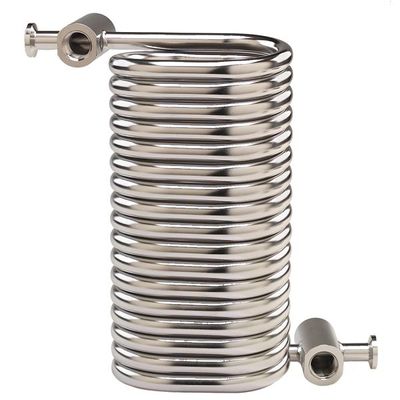

Exergy - Model 00459-01 - Sanitary Tube-in-Tube Heat Exchanger
FromExergy LLC

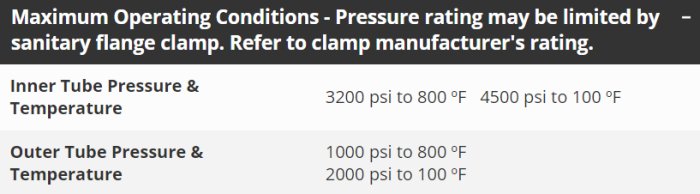

The 00459-01 Sanitary Tube-in-Tube Heat Exchanger from Exergy LLC is engineered to provide high efficiency in heat transfer for sanitary applications. It boasts a compact design with inner tubes measuring 0.25 inches OD with a 0.035-inch wall and outer tubes at 0.50 inches OD with a 0.035-inch wall. The unit is constructed from 316L Stainless Steel which ensures high durability and corrosion resistance. It features an inner tube pressure capacity of up to 3200 psi at 800°F and up to 4500 psi at 100°F, while the outer tube can handle up to 1000 psi at 800°F and 2000 psi at 100°F. Flange connections follow ASME BPE standards, supporting versatility in various industrial applications. Additionally, it has a heat transfer area of 1.2 ft² and a maximum product contact surface finish of SF4: 15 µin (0.4 µm) Ra Max, ensuring optimal performance and compliance with sanitary standards. The heat exchanger weighs 5.90 lbs (2.70 kg) when empty, making it suitable for both stationary and mobile setups within the pharmaceutical, biotech, and food processing industries.Most popular related searches
Inner Tube Size: 0.25 in. OD x 0.035 in. Wall6.4 mm OD x 0.9 mm Wall
Outer Tube Size: 0.50 in. OD x 0.035 in. Wall
0.50 mm OD x 0.035 mm Wall
Inner Tube Fitting: 1/2 ASME BPE Flange
Outer Tube Fitting: 1/2 in. NPT Female
Weight Empty: 5.90 lb
2.70 kg
Heat Transfer Area: 1.2 ft²
0.11 m²
Product Contact Surface Finish: SF4: 15 µin (0.4 µm) Ra Max, Electropolished
Material: All Components 316L Stainless Steel
