Schmid - Model PERT -Unlike Standard Solar Cells
FromSchmid Group

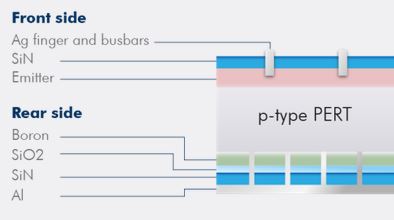

Unlike standard cells and PERC, which both use an aluminum-alloy BSF, PERT (Passivated Emitter Rear Totally Diffused) cells have a diffused rear surface. That means, with p-PERT the emitter of p-type based wafer is formed with phoshphorus diffusion and BSF is realized with boron doping. PERT cells do not show the considerably light-induced degradation and can be adapted to bifacial.
Most popular related searches
PERC cell
photovoltaic cell
photovoltaic cell system
solar cell
vaporizer system
furnace
photovoltaic system
photovoltaic
SCHMID’s PERT Solution:
- High efficiency by passivation on multi material
- Boron BSF PERT multi cells show no light-induced degradation (LID) unlike PERC cells
- Same cost of ownership as for PERC cells
- Smart process by proven equipment: SCHMID’s PERT technology is based on APCVD (Atmospheric Pressure Chemical Vapor Deposition) systems that have been used in industry with high acceptance for more than 10 years
- Formation of phosphorus emitter and boron BSF in one thermal cycle with Horizontal Tube Furnace
- PERT cells can be used in conventional backsheet modules
- Reconfiguration of the production line (PERT monofacial to bifacial) within hours
- PERT line can be used for bifacial cells as well
- High flexibility
- Complete technology out of one hand
- Proven process equipment
