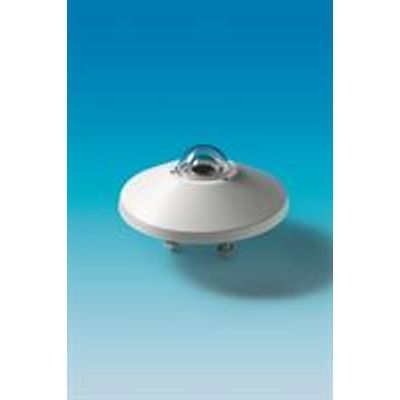

The pyranometer LP PYRA 10 measures the irradiance on a flat surface (Watt/m2).
The radiation measured is the sum of direct solar irradiance and diffuse irradiance
(global radiation).
The LP PYRA 10 is a pyranometer classified as Secondary in accordance with ISO
9060 and according to the publication “Guide to Meteorological Instruments and
Methods of Observation”, fifth edition (1983) of WMO
The pyranometer is available in three versions:
LP PYRA 10 PASSIVE *
LP PYRA 10 AC ACTIVE with CURRENT 4..20 mA output
LP PYRA 10 AV ACTIVE with VOLTAGE 0..1 V, 0..5 V, 0..10 V output, to specify at the
time of ordering **.
* The passive version can be connected to the instrument through the indicator
DO9847 by SICRAM module VP 472
** Version with 0...1 Volt output can be connected by SICRAM VP474 to the instrument
HD2302.0 which provides direct reading in W/m2.
