Exergy LLC - Model 00402-02 - Shell & Tube Heat Exchanger
FromExergy LLC

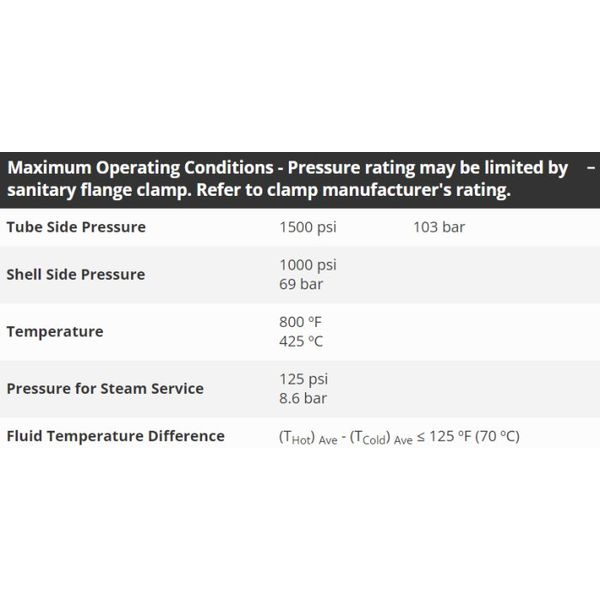

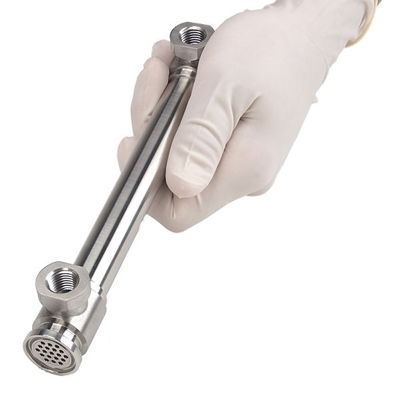

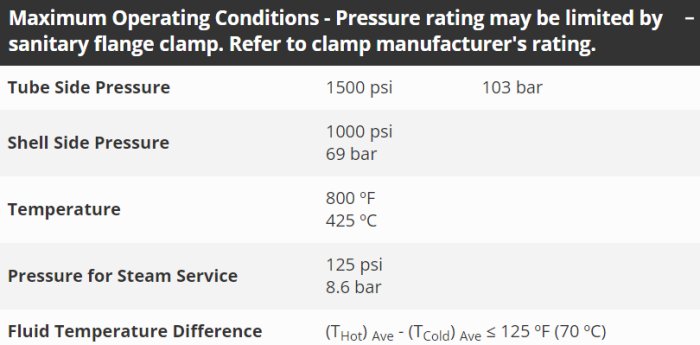

The 17 Series Single Tubesheet Sanitary Shell & Tube Heat Exchanger by Exergy LLC is engineered for applications requiring compact design and superior thermal performance. Constructed entirely from 316L stainless steel, the exchanger features 19 tubes, each 0.094 inches in outer diameter and 8 inches long. The product contact surfaces are electropolished to a maximum roughness average (Ra) of 15 µin (0.4 µm), classified as SF4. With a shell diameter of 0.75 inches, the unit maintains a heat transfer area of 43.4 square inches (280 cm²). The equipment is rated to handle up to 1500 psi (103 bar) on the tube side and 1000 psi (69 bar) on the shell side, and can operate effectively at maximum temperatures of 800°F (425°C). It uses a 3/4-inch ASME-BPE flange fitting on the tube side and a 1/4-inch NPT female fitting on the shell side. This heat exchanger is designed to meet stringent sanitary standards and is suitable for various industrial applications, including pharmaceutical, biotech, and food processing.Most popular related searches
tube heat exchanger
heat exchanger
heat exchanger tube
sanitary heat exchanger
single tube heat exchanger
heat exchanger design
Series: 17
Shell Diameter: 0.75 in.
19 mm
Tube Sheet Type: Single
Material: All Components 316L Stainless Steel
Tube Count: 19
Tube Length: 8.00 in.
203 mm
Tube Outer Diameter: 0.094 in.
2.4 mm
Product Contact Surface Finish: SF4: 15 µin (0.4 µm) Ra Max, Electropolished
Tube Side Fitting: 3/4 in. ASME-BPE Flange
Shell Side Fitting: 1/4 in. NPT Female
Dimension A: 8.07 in.
205 mm
Dimension B: 6.25 in.
159 mm
Weight Empty: 0.63 lb
0.29 kg
Heat Transfer Area: 280 cm²
43.4 in²
