Viatronics - Model 32 Amber - Speed Monitoring and Display System

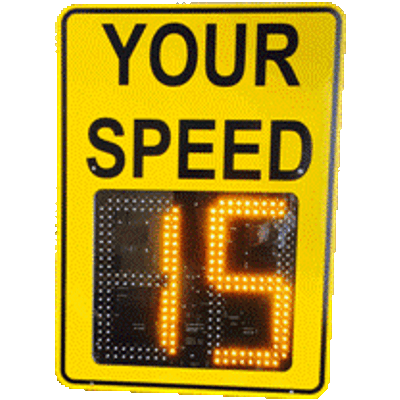

The Speed Display ViaSite 32 Amber is a versatile speed monitoring and display system capable of showcasing speeds up to 99 KPH or MPH. The unit uses single amber-colored digits that flash when the detected speed surpasses the set limit, ensuring clear visibility and immediate feedback. It can be equipped with additional functionalities, including data collection, wireless data transfer, and options for battery and solar power. The rugged aluminum case with a powder-coated finish ensures durability, while a 5 mm thick polycarbonate front shield provides antireflective properties. It features a retroreflective Class 1 sticker for enhanced visibility, and customizable front decorations per customer requirements. With an IP56 rating, it guarantees protection against dust and strong water jets. The LED digit display is amber-colored, with digits 320 mm high, offering a viewing angle of 30 degrees and a minimum reading distance of 150 meters. The speed range is 1-99 KPH with an accuracy of ±1 KPH, and the measurement range varies from 50-250 meters depending on the sensor type. The temperature operating range is -30 to +50°C, and the unit supports power inputs of 12 VDC and 100-240 VAC. It weighs approximately 10 kg and can optionally include a 12VDC 20 Ah battery. The display also features brightness adjustment with a continuous characteristic and low standby power consumption of less than 50 mA at 12V DC. Installation is straightforward, and the unit includes a directional radar sensor.

Viatronics - Model 32 Amber - Speed Monitoring and Display System

Details

Mechanical Specification:

Led Digit Display
