SciencetechModel 125-9007 - (SSIVT-REF) SSIVT Reference Detector

SHARE

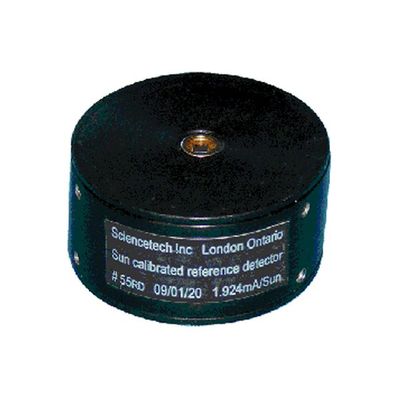

The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated to the sun. The SSIVT-REF detector is used with SSIVT-1KF IV measurement system it can also be used with the Sciencetech SOL-METER solar power meter.

Most popular related searches
  • Name : (SSIVT-REF) SSIVT Reference Detector
  • SKU : 125-9007
  • Spectral Region : NIR, UV, Visible
  • Detector Material : Silicon (Si)
  • NEP : < 8.10 x 10-15W/Hz½
  • Active Area (diameter or square) : 2.5mm
  • Temperature Control : Non-cooled
  • Spectral Range (nm) : 190-1100nm
  • AC or DC Coupling : DC Coupled
  • Single or Multichannel : Single
  • Responsivity : @200nm 0.12 A/W Typical (0.10 minimum), Peak @960nm 0.5A/W
  • Detectivity (cm-Hz^1/2/W) : not applicable
  • Horizontal Pixel Range : No
  • Detector Type : Solid State
