EL-Cell - Model PAT-Stand-1 - The Ideal Docking Station For Individual Battery Testing
FromEL-Cell GmbH

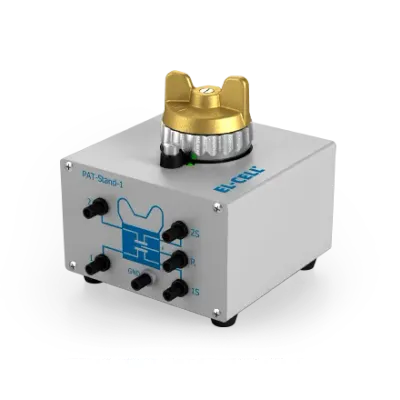

The PAT-Stand-1 is a docking station, which runs a single PAT-Cell or PAT-Cell-Press. It can be connected directly to a common multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000) using 4mm banana sockets or a hardwired Sub-D socket. Therefore, the PAT-Stand-1 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test. The PAT-Stand-1 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab. Furthermore it is small enough to be placed inside a glovebox and allows immediate functional testing of the PAT-Cell. It is even possible to perform whole battery tests inside the glovebox. If you want to perform individual battery tests before switching to the larger PAT-Stand-16 system, then the PAT-Stand-1 is the ideal entry docking station for you.Most popular related searches
- Compatible with all of today´s multi-channel potentiostats and battery testers
- Can be placed on the bench or inside temperature chamber
- Saves wiring effort and space in the lab
Height: 81/110 mm (without/with PAT-Cell)
Width: 105 mm
Depth: 113 mm
Weight: approx. 0.56/0.96 kg (without/with PAT-Cell)
Temperature resistance: -20
