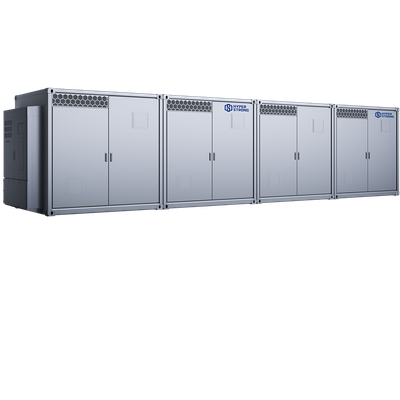

HyperStrong - Model HyperBlock M - - Utility-Scale Energy Storage Solution
The HyperBlock M system offers a utility-scale energy storage solution leveraging the innovative MagicBlock platform. Designed for high efficiency and flexibility, it provides a remarkably low levelized cost of storage (LCOS) and high safety standards. This system includes advanced features such as a 24-ton module adaptable for various types of transport including maritime, land, and rail. It supports configurations ranging from side-by-side to back-to-back parallel arrangements, accommodating between 1 and 8 blocks. The smart liquid-cooling technology and dual-channel TMS reduce energy consumption by 20% while maintaining an efficiency up to 98.9%. The system's design supports various grid-forming capabilities and ensures comprehensive safety with AI-based thermal runaway early warning technology. Additionally, the HyperGenie assistant streamlines operation and maintenance efforts through intelligent guidance functions, enhancing on-site workload efficiency.
HyperBlock M is derived from the brand-new MagicBlock platform. We bring customers mega-efficient, ultimate safety, ultra-flexible, low LCOS, and extremely simple ESS solutions through a new utility-scale storage product platform MagicBlock and AI.
Ultra-high Flexibility
1, 2, 4, 8 blocks can be configured arbitrarily
Supports “side by side, back to back” parallel arrangement
24 tons module, supports maritime, land, and railway transportation
Flexible supplement, low replacement cost
Mega-efficient
RTE ≥ 93%@4h, 690Vac
New self-developed SIC PCS with max 98.9% efficiency
Dual-channel liquid-cooled TMS for batteries and PCS, decreasing 20% energy consumption
Long Lifecycle
>10000cls@SOH70%, 0.5P
Full-time balancing technology, improving lifecycle discharge capacity by more than 2%
Intelligent TMS and dynamic temperature control algorithm realize the reliable guarantee of battery life
Grid-friendly
Support Grid-forming, Grid-following, Black Start and islanding protection, etc
Ultimate Safety
Comprehensive safety protection design, to achieve full coverage of all scenarios
AI-based technology enables thermal runaway early warning 7 days in advance
The maximum thermal runaway loss reduced from 20HC to 10HC
Minimal Maintenance
Provide AI-based intelligent platform, conduct more than 10 types of O&M work online and offline
The O&M work assistant HyperGenie is constructed to realize intelligent guidance functions, reducing the difficulty and workload on site
- Product : Liquid-cooling ESS
- Model : HSL3G71-12800
- Battery Cell : LFP-601Ah
- Configuration : 16P416S
- Rated Energy : 12.8 MWh
- Rated Voltage : 1331.2 Vdc
- Rated AC Power : 400kW * 8
- Rated AC Voltage : 690 Vac
- Rated Frequency : 50Hz/60Hz
- Dimensions (W*D*H) : 12192*2438*2896mm
- Operating Temperature : -30°C~55°C
- Cooling Method : Smart Liquid Cooling
- Fire Suppression system : Combustible gas detection, temperature sensor, smoke detection, cabin level aerosols, deflagration venting panels, water fire protection
- Certifications : EN61000, IEC62619, IEC60730, IEC62477, IEC62933, UL9540A, UL1973, UL9540, NFPA855/68/69, UN38.3, EN50549, G99, VDE4110, VDE4120, UL1741, IEEE1547
