Bruk-Bet Sp. z o.o. products

Rezydencja Novator fence blocks will transform your property. These are modern forms available in many colors to choose from, so you can easily match them to window joinery, elevations and garden architecture elements, creating a fashionable fence. The rectangular, elongated form of each solution will give the space a stylish character. It is complemented by a practical roof with reinforced utility values, which will crown the whole. Such a set is a guarantee of creating an effective and durable fence, which will provide even more usability thanks to the possibility of installing a photovoltaic span.

Continental fence blocks have a regular rectangular shape and a beautiful fine-grained surface structure. Subdued, natural colors will harmoniously match the surroundings. The ideal material for creating an elegant and modern arrangement around the house. The system consists of two elements, although it is also possible to arrange the fence using only one of them. The construction of the fence is extremely simple and exceptionally fast. Flat roofs available in all colors of the Continental block are dedicated to the system. It is possible to install a photovoltaic span .

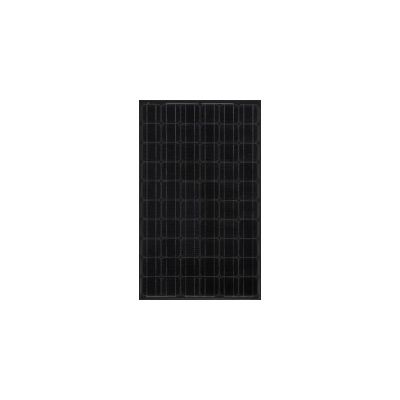

One of the most noticeable trends in modern construction sector is the implementation of ecological solutions. Observing the changing environment, Bruk-Bet Solar has introduced BIPV (Building Integrated Photovoltaics) panels to its portfolio.

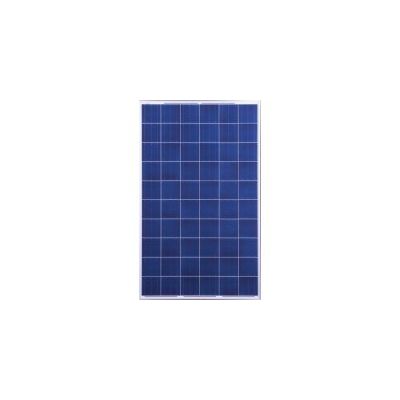

Maximum power [Pmax]: 250. Cells: Polycrystalline Si. Size:  156 x 156 mm. Nr of cells: 60. Short circuit current [Isc]: 8,75. Open circuit voltage [Voc]: 38,1. Maximum power current [Imax]: 8,25. Maximum power voltage [Vmax]: 30,35. Module efficiency: 15,40 %. Maximum system voltage:  1000 V DC. Tolerance: 0 +4,99. Temperature coefficient current TcI: +0,05 %/°C. Temperature coefficient voltage TcV: -0,34 %/°C. Power temperature coefficient TcP: -0,41%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):   42 °C

Maximum power [Pmax]: 235. Cells: Polycrystalline Si. Size:  156 x 156 mm. Nr of cells: 60. Short circuit current [Isc]: 8,5. Open circuit voltage [Voc]: 37,2. Maximum power current [Imax]: 7,95. Maximum power voltage [Vmax]: 29,57. Module efficiency: 14,50 %. Maximum system voltage:  1000 V DC. Tolerance: 0 +4,99. Temperature coefficient current TcI: +0,05 %/°C. Temperature coefficient voltage TcV: -0,34 %/°C. Power temperature coefficient TcP: -0,41%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):   42 °C

Maximum power [Pmax]:240. Cells:Polycrystalline Si. Size: 156 x 156 mm. Nr of cells:60. Short circuit current [Isc]:8,55. Open circuit voltage [Voc]:37,65. Maximum power current [Imax]:8,03. Maximum power voltage [Vmax]:29,9. Module efficiency:14,70 %. Maximum system voltage: 1000 V DC. Tolerance:0 +4,99. Temperature coefficient current TcI:+0,05 %/°C. Temperature coefficient voltage TcV:-0,34 %/°C. Power temperature coefficient TcP:-0,41%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):  42 °C

Maximum power [Pmax]: 245. Cells: Polycrystalline Si. Size:  156 x 156 mm. Nr of cells: 60. Short circuit current [Isc]: 8,65. Open circuit voltage [Voc]: 37,85. Maximum power current [Imax]: 8,15. Maximum power voltage [Vmax]: 30,15. Module efficiency: 15,10 %. Maximum system voltage:  1000 V DC. Tolerance: 0 +4,99. Temperature coefficient current TcI: +0,05 %/°C. Temperature coefficient voltage TcV: -0,34 %/°C. Power temperature coefficient TcP: -0,41%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):   42 °C

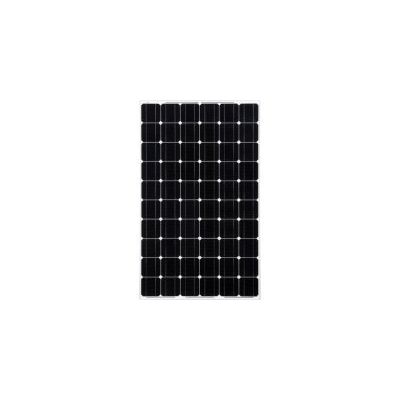

Maximum power [Pmax]: 250. Cells: Monokrystaliczne Si. Size:  156 x 156 mm. Nr of cells: 60. Short circuit current [Isc]: 8,8. Open circuit voltage [Voc]: 37,9. Maximum power current [Imax]: 8,28. Maximum power voltage [Vmax]: 30,25. Module efficiency: 15,40 %. Maximum system voltage:  1000 V DC. Tolerance: 0 +4,99. Temperature coefficient current TcI: +0,03 %/°C. Temperature coefficient voltage TcV: -0,32 %/°C. Power temperature coefficient TcP: -0,39%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):   45 °C

Maximum power [Pmax]: 250. Cells: Monokrystaliczne Si. Size:  156 x 156 mm. Nr of cells: 60. Short circuit current [Isc]: 8,8. Open circuit voltage [Voc]: 37,9. Maximum power current [Imax]: 8,28. Maximum power voltage [Vmax]: 30,25. Module efficiency: 15,40 %. Maximum system voltage:  1000 V DC. Tolerance: 0 +4,99. Temperature coefficient current TcI: +0,03 %/°C. Temperature coefficient voltage TcV: -0,32 %/°C. Power temperature coefficient TcP: -0,39%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):   45 °C

Maximum power [Pmax]: 255. Cells: Monokrystaliczne Si. Size:   156 x 156 mm. Nr of cells: 60. Short circuit current [Isc]: 8,9. Open circuit voltage [Voc]: 38,1. Maximum power current [Imax]: 8,38. Maximum power voltage [Vmax]: 30,45. Module efficiency: 15,70 %. Maximum system voltage:   1000 V DC. Tolerance: 0 +4,99. Temperature coefficient current TcI: +0,03 %/°C. Temperature coefficient voltage TcV: -0,32 %/°C. Power temperature coefficient TcP: -0,39%/°C. NOCT(800 W/m2, 20°C, AM 1.5, 1m/s):   43 °C
