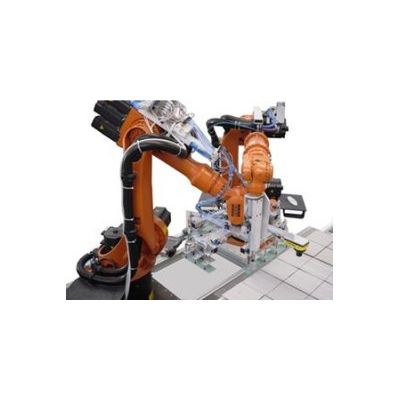

IC200AR is a robotized station for completing the electrical interconnection of the module prior lamination. The system operates as an inline process station which solders bus ribbons to solar cell strings thanks the integration of four robots with designated tool and device. Solar modules are supplied to the system on a conveyor from layout station and the first step of the robotic process involves cutting bus ribbon to length and loading of robot gripper. Then the robot move and accurately place each bus bar in accordance with the module design just before a further robot perform the soldering. Bottom and top module side are assembled at the same time. Each side is using a vision camera for ribbon positioning and welding point detection. The bus strips are soldered on the spot in a soldering process that delivers repeatable high quality results.

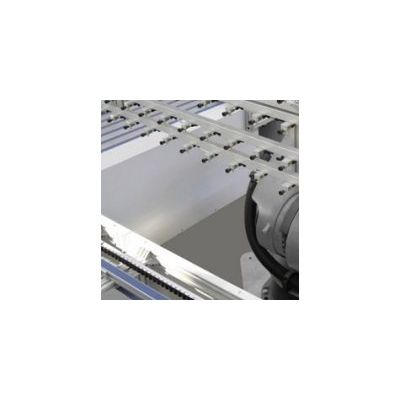

GE200AR is a stetion that deposition second encapsulation sheet and the back layer (backsheet or glass) is handled by a special robotized cell extremely flexible and versatile in application of film and protective layers which complete the sandwich before the lamination step. Particular attention was paid to the film punching and the extraction of terminals through appropriate tools. Again the replacement operations of raw materials can be performed without any process interruption. The change of format is completely automated. The high reliability, the fine positioning accuracy and the low maintenance are finally important factors that increase the performance of equipment and provide a product with high quality standards.
